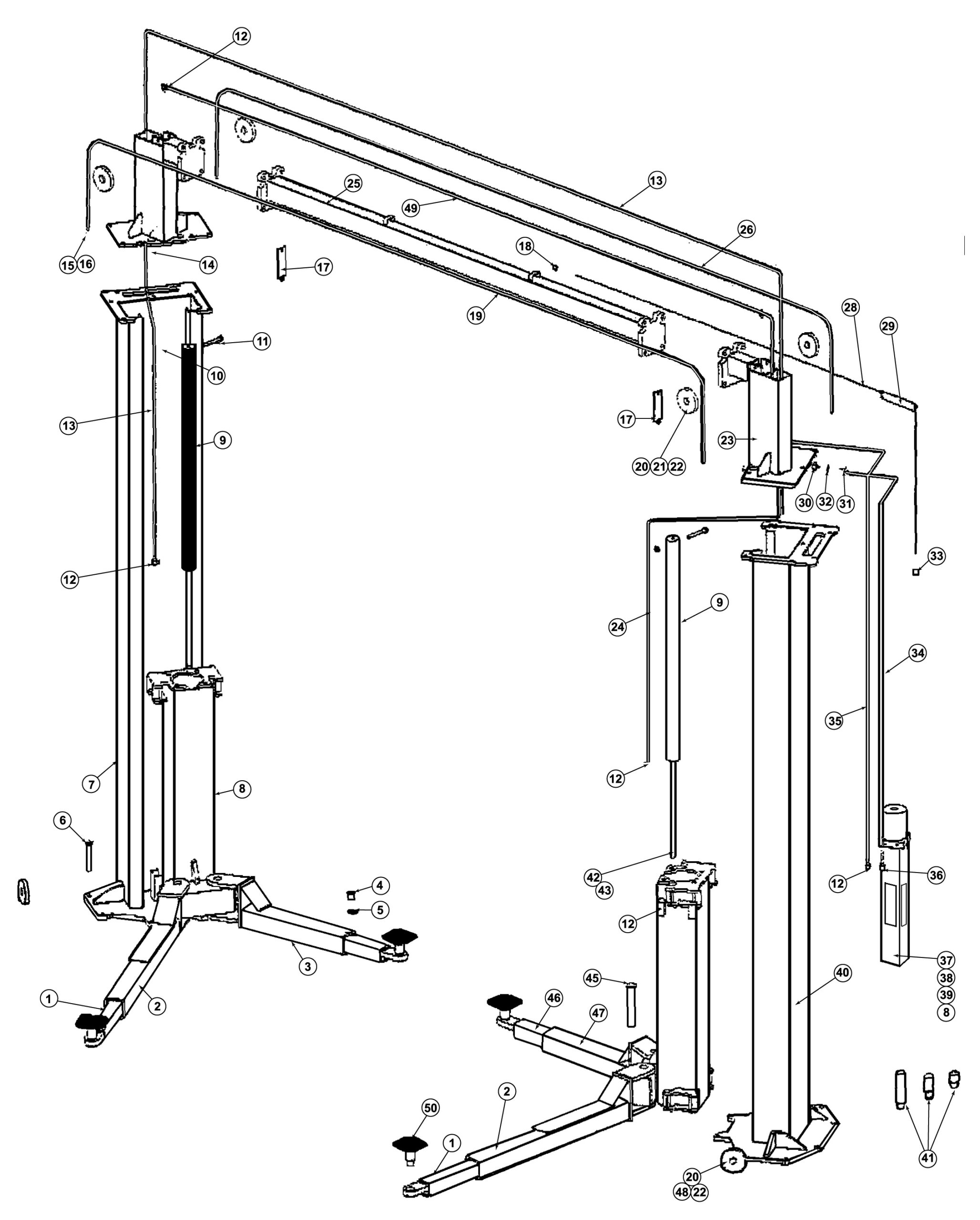

| 1- |
|
BH-7239-12 |
112608 |
1 |
Inner Rear Swing Arm LH |
Contact |
| 2- |
|
BH-7239-11 |
112607 |
1 |
Inner Rear Swing Arm RH |
Contact |
| 3- |
|
BH-7239-09 |
112605 |
1 |
Arm Tube Short LH |
Contact |
| 4- |
|
|
912631 |
1 |
1/2-13 x 3/4" Hex Head Capscrew |
Contact |
| 5- |
|
|
912607 |
1 |
1/2" Lock Washer, |
Contact |
| 6- |
|
|
913828 |
16 |
3/4" x 5-1/2" Anchor Bolt |
Contact |
| 7- |
|
|
112201 |
1 |
Driver side Column |
Contact |
| 8- |
|
BH-7239-41 |
57501 |
1 |
Carriage Weldment |
Contact |
| 9- |
|
BH-7236-02 |
992317 |
2 |
Hydraulic Cylinder 2 x 67-1/2 |
$746.65 |
| 10- |
|
|
912603 |
2 |
1/2-13 Nylock Nut |
Contact |
| 11- |
|
|
912791 |
2 |
1/2-13 x 5" Hex Head Capscrew |
Contact |
| 12- |
|
BH-7236-99 |
992402 |
1 |
Elbow |
$32.59 |
| 13- |
|
BH-7236-40 |
992143 |
1 |
Hydraulic Hose 205" |
$122.12 |
| 13- |
|
|
992153 |
1 |
Hydraulic Hose 253" A2 |
Contact |
| 14- |
|
|
057802 |
2 |
Driver side Upright |
Contact |
| 15- |
|
BH-7235-69 |
913604 |
1 |
Lock Nut |
Contact |
| 16- |
|
|
913606 |
1 |
3/4" SAE Washer |
Contact |
| 17- |
|
BH-7239-227 |
056805 |
1 |
Overhead Limit Cable Ring |
Contact |
| 18- |
|
BH-7153-84 |
991084 |
1 |
1/16" Cable Clamp |
$5.16 |
| 19- |
|
BH-7235-08 |
992627 |
1 |
Eq Cable 33'-6" (see also item 26) |
$118.14 |
| 19- |
|
BH-7235-09A |
992639 |
1 |
Eq Cable 37'-6" A2 (see also item 26) |
$279.30 |
| 20- |
|
BH-7203-041 |
991030 |
1 |
Top Rail Snap Ring |
$12.27 |
| 21- |
|
BH-7235-00 |
995020 |
4 |
Cable Sheave 4" |
$142.88 |
| 22- |
|
BH-7239-128 |
991211 |
1 |
Sheave Bushing |
Contact |
| 23- |
|
|
057801 |
1 |
Passenger side Upright |
Contact |
| 24- |
|
BH-7236-38 |
992141 |
1 |
Hydraulic Hose 55" 10A |
$86.39 |
| 25- |
|
BH-7239-228 |
057803 |
1 |
Overhead Weldment 100-3/4" |
Contact |
| 26- |
|
BH-7235-09 |
992630 |
1 |
Eq Cable 33' (see also Item 19) |
$176.61 |
| 26- |
|
BH-7235-09E |
992640 |
1 |
Eq Cable 37' A2 (see also Item 19) |
$259.11 |
| 27- |
|
|
992419 |
1 |
3/8" JIC Branch Tee to 3/8" MNPT |
Contact |
| 28- |
|
BH-7235-09C |
992609 |
1 |
Cable, Limit Switch, 1/16 x 16' |
$54.65 |
| 29- |
|
BH-7239-229 |
057804 |
1 |
Upright Limit Cable Ring |
Contact |
| 30- |
|
BH-7237-35 |
992463 |
1 |
Bulkhead Fitting |
Contact |
| 31- |
|
F-3355SW-6 |
992464 |
1 |
3/8" JIC 45 Swivel Nut |
$9.61 |
| 32- |
|
|
992454 |
1 |
3/8" Bulkhead Nut |
Contact |
| 33- |
|
BH-7239-88 |
991244 |
1 |
1/8" Cable Clamp |
Contact |
| 34- |
|
BH-7236-39 |
992142 |
1 |
Hydraulic Hose 62", 10A |
$62.58 |
| 35- |
|
BH-7236-32 |
992137 |
1 |
Hydraulic Hose 86" |
$102.94 |
| 36- |
|
BH-7235-73 |
992410 |
1 |
9/16" O-Ring to 3/8" JIC Elbow |
$31.62 |
| 37- |
|
BH-7006A-21 |
992030 |
1 |
Power Unit with RV-21 Relief Valve (BH-7006-48) |
$1,227.29 |
| 38- |
|
|
911701 |
4 |
5/16" - 18 Hex Nut |
Contact |
| 39- |
|
|
911703 |
4 |
5/16-18 Nylock Nut |
Contact |
| 40- |
|
|
112101 |
1 |
Power Unit Column |
Contact |
| 41- |
|
BH-7089-99B |
995550 |
1 |
6" Pad Extension |
$71.06 |
| 41- |
|
BH-7089-98 |
995560 |
1 |
3" Pad Extension |
$57.59 |
| 41- |
|
BH-7235-72 |
996220 |
1 |
1-1/2" Pad Extension |
$133.26 |
| 42- |
|
|
913602 |
1 |
3/4-16 Hex Nut |
Contact |
| 43- |
|
|
913611 |
1 |
3/4-16 Jam Nut |
Contact |
| 44- |
|
BH-7235-27 |
995120 |
16 |
Carriage Slider Block |
$43.54 |
| 44- |
|
BH-7235-27A |
106518 |
1 |
Shim for Carriage Slider Block |
$23.82 |
| 45- |
|
BH-7235-34 |
995430 |
4 |
Arm Pin 8" |
$57.90 |
| 46- |
|
BH-7239-10 |
112606 |
2 |
Inner Swing Arm Front |
Contact |
| 47- |
|
BH-7239-08 |
112604 |
1 |
Outer Swing Arm Front RH |
Contact |
| 48- |
|
BH-7235-66 |
995030 |
2 |
Cable Sheave 6-1/8" |
$210.71 |
| 49- |
|
BH-7236-41 |
992144 |
1 |
Hydraulic Hose 113" |
$136.28 |
| 49- |
|
BH-7237-52 |
992154 |
1 |
Hydraulic Hose 162" A2 |
Contact |
