BH-9420-29 |
|
1 |
Rubber Pad Adapter |
$86.59 |
| --- |
|
BH-9801-C |
|
1 |

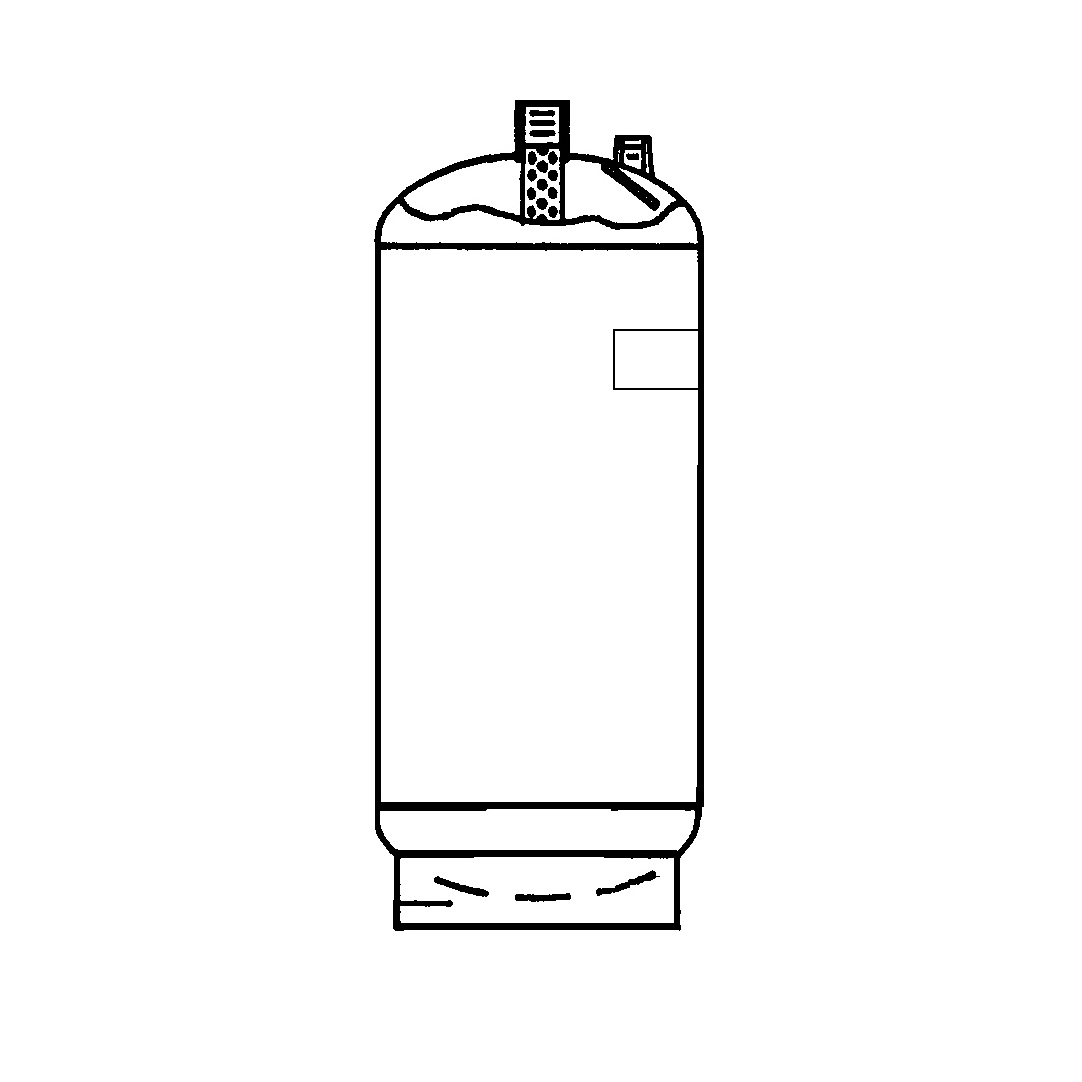

Air/Oil Tank for Full Hydraulic Lift (Add "FG" for Fiberglass Coating) |
$3,944.40 |
| --- |
|
BH-9321-07 |
N21812-G1 |
1 |
Air Vent / Bleeder |
$40.93 |
| 1- |
|
BH-1798XU |
UW102 |
1 |
10-5/8" Lift Packing Kit |
$391.52 |
| 1- |
|
BH-1798SP |
UW102 |
1 |
10-5/8" Spring Style Lift Packing Kit |
$428.55 |
| 2- |
|
BH-9420-15 |
B-35054 |
1 |
Wiper Seal Cover (Gland) 12 Bolt |
$691.31 |
| 3- |
|
BH-9420-14 |
B-35056 |
1 |
Holder Ring (Steel) |
$254.00 |
| 3- |
|
BH-9420-14L |
|
1 |
Holder Ring (for 2L Plungers) |
Contact |
| 4- |
|
BH-9420-16TK |
B-35055 |
1 |
Upper Guide Bearing |
$1,945.44 |
| 5- |
|
|
438XG22 |
12 |
Capscrew |
Contact |
| 6- |
|
BH-9420-04A |
35573-006 |
1 |
Casing Assembly (Full Hyd.) |
Contact |
| 7- |
|
BH-9420-05 |
B-35570-12 |
1 |
Plunger Assembly (Full Hyd.) |
Contact |
| 8- |
|
|
B-41569 |
1 |
Lower Guide Bearing |
Contact |
| 9- |
|
BH-9420-03 |
359XM1250 |
1 |
Spring Pin |
$8.84 |
| 10- |
|
BH-9420-01 |
B-41538-1 |
1 |
Access Plug/Dipstick New 2" |
$173.18 |
| 11- |
|
BH-9420-02 |
204X3 |
1 |
Access Plug Gasket 2" |
$8.84 |
| 14- |
|
BH-9420-17 |
A-41085 |
1 |
Float Stop |
$31.75 |
| 15- |
|
BH-9420-18 |
A-39183 |
1 |
Float |
$217.48 |
| 16- |
|
BH-9420-19 |
A-43457 |
1 |
New Orifice Seals without tools |
$317.50 |
| 16- |
|
BH-9420-19A |
A-43457-G01 |
1 |
New Style Orifice Kit with tools |
$463.31 |
| 17- |
|
BH-9420-21 |
C-42876 |
1 |
Bolster Assembly |
$3,056.70 |
| 18- |
|
BH-9420-23 |
B-32101-2 |
4 |
Wear Washer |
$31.75 |
| 19- |
|
BH-9420-22 |
B-42936 |
4 |
Arm Assembly |
$998.70 |
| 20- |
|
|
426XG-N14 |
4 |
Locking Cap Screw |
Contact |
| 21- |
|
BH-9420 |
A-40689 |
4 |
Arm Bushing/Spacer |
$14.58 |
| 22- |
|
BH-9420-09 |
C-34354 |
4 |
Sleeve and Adapter Assy. |
$614.80 |
| 23- |
|
BH-9420-11 |
C-34355 |
4 |
Lifting Pad only |
$127.00 |
| 23- |
|
|
359XH0750 |
2 |
Stop Pin |
Contact |
| 24- |
|
|
438XI22 |
4 |
Cap Screw |
Contact |
| 25- |
|
|
430XG20 |
1 |
Cap Screw |
Contact |
| 26- |
|
BH-9420-10 |
412XH-008 |
4 |
Arm Stop Pin for Sleeve black |
$8.84 |
| 26- |
|
BH-9420-10C |
|
1 |
Cap / Plug |
$5.89 |
| 26- |
|
BH-9420-10B |
|
4 |
Arm Stop Pin for Sleeve silver |
$17.50 |
| 27- |
|
BH-EL-67 |
C-43860 |
1 |
Non-Rotator |
$523.44 |
| 27- |
|
BH-TR-67 |
C-43860 |
1 |
Top Release Non-Rotator |
$576.68 |
