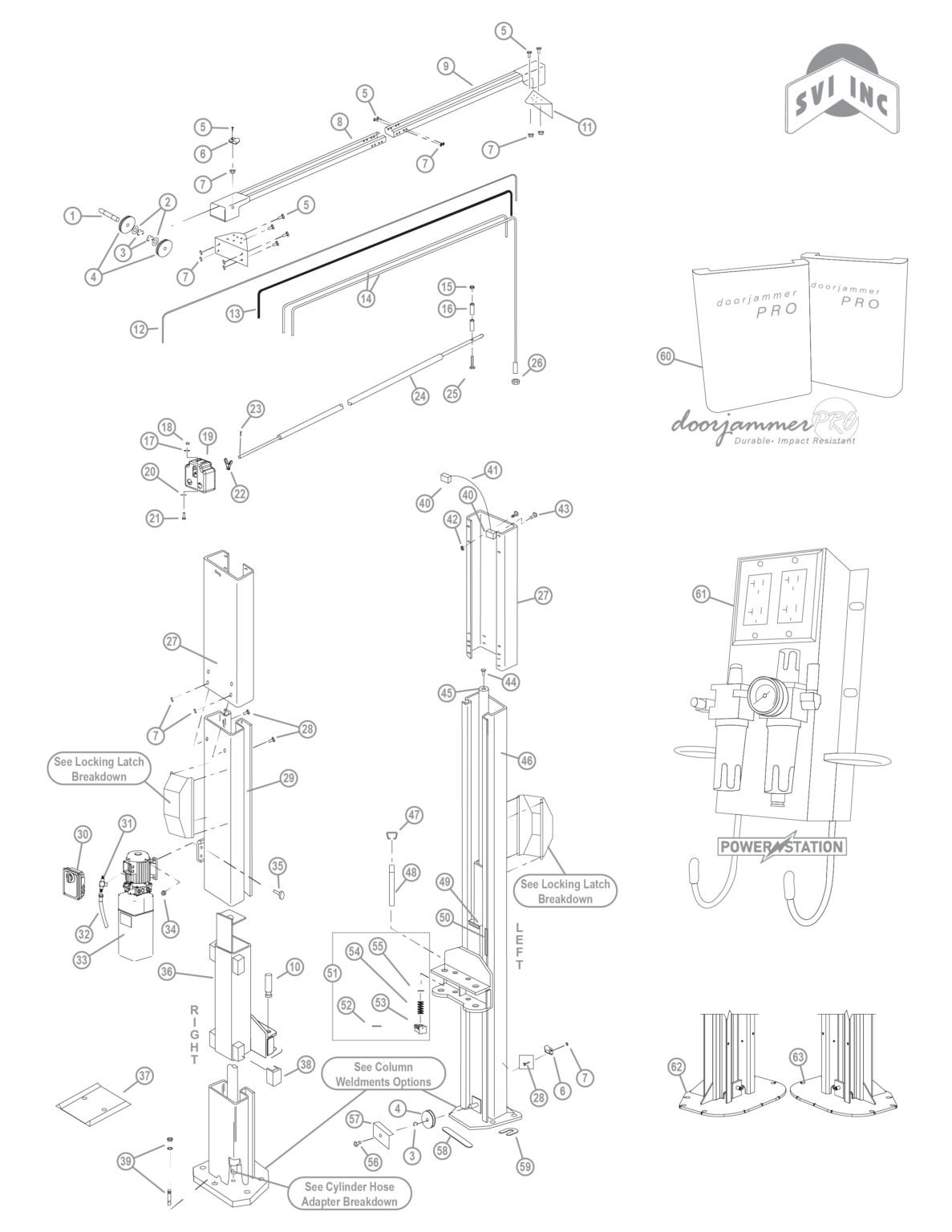

| 1- |
|
BH-7500-68 |
FJ7444-8 |
1 |
Sheave Shaft |
$49.12 |
| 2- |
|
BH-7500-49B |
41388 |
1 |
1-1/2" O.D. x .760-.770" I.D. x .045" Bushing |
$10.54 |
| 3- |
|
BH-7529-09 |
N472 |
1 |
Column Extension - EH-2 Model |
$761.40 |
| 3- |
|
BH-7500-62A |
41411 |
1 |
Retaining Ring for 3/4" Shaft |
$9.15 |
| 4- |
|
BH-7530-01N |
N377 |
1 |
Sheave |
$25.94 |
| 5- |
|
|
40124 |
1 |
3/8" -16 NC x 3/4" Long Flanged HHCS |
Contact |
| 6- |
|
BH-7529-18 |
N383 |
1 |
Hose Clip |
$10.30 |
| 7- |
|
BH-7545-14 |
N3156 |
1 |
Hydraulic Cylinder Assembly, 68" Stroke |
$1,116.00 |
| 7- |
|
|
40664 |
1 |
3/8" -16NC Flanged Locknut |
Contact |
| 8- |
|
BH-7542-62 |
N481 |
1 |
R.H. Overhead Assembly (Inner) |
$1,053.15 |
| 9- |
|
BH-7542-62 |
N480 |
1 |
L.H. Overhead Assembly (Outer) |
$1,053.15 |
| 10- |
|
BH-7545-54 |
N2154 |
4 |
Arm Pin |
$139.96 |
| 11- |
|
BH-7545-07 |
N439 |
1 |
Column Mounting Bracket |
$80.21 |
| 12- |
|
BH-7535-21 |
FJ7600 |
1 |
Locking Latch Cable |
$68.00 |
| 13- |
|
BH-7545-73 |
N3103 |
1 |
Overhead Hose - Standard Height |
$221.85 |
| 14- |
|
BH-7529-86 |
N372 |
2 |
Equalizer Cables - Standard Height |
$76.01 |
| 15- |
|
|
40642 |
1 |
1/4" -20NC Insert Locknut |
Contact |
| 16- |
|
BH-7503-29 |
FJ7871 |
1 |
3/4" Spacer |
$16.51 |
| 17- |
|
|
40779 |
1 |
1/4" External Tooth Lockwasher |
Contact |
| 18- |
|
|
40627 |
1 |
1/4" -20NC Zinc Hex Nut |
Contact |
| 19- |
|
|
|
1 |
Cutoff Switch Assembly |
Contact |
| 20- |
|
|
40795 |
1 |
1/4" Flat Washer |
Contact |
| 21- |
|
|
40099 |
1 |
1/4" -20NC x 3/4" Lg. HHCS |
Contact |
| 22- |
|
|
N432-5 |
1 |
Actuator Assembly (3Ø) |
Contact |
| 23- |
|
BH-7521-45 |
41200 |
1 |
1/8” x 1” Lg. Cotter Pin (3Ø only) |
Contact |
| 24- |
|
BH-7545-08 |
N467 |
1 |
Switch Bar Assembly |
$104.43 |
| 25- |
|
|
40114 |
1 |
1/4" -20NC x 2-3/4" HHCS |
Contact |
| 26- |
|
|
40743 |
1 |
5/8" -11NC Nylon Insert Lock Nut |
Contact |
| 26- |
|
|
40063 |
2 |
1/4" -20NC x 3/8" Lg. PHMS Plated |
Contact |
| 27- |
|
BH-7545-09 |
N470 |
1 |
Column Extension - Standard Height |
$461.96 |
| 27- |
|
|
N471 |
1 |
Column Extension - EH-1 Model |
Contact |
| 28- |
|
|
|
1 |
3/8" -16NC x 3/4" Carriage Bolts |
Contact |
| 29- |
|
BH-7545-04 |
N755 |
1 |
R.H. Column Standard Weldment |
Contact |
| 30- |
|
|
FA7147-1 |
1 |
Capacitor Box |
Contact |
| 30- |
|
BH-7515-70 |
FA7366-1 |
1 |
Capacitor Box Cover Plate |
Contact |
| 30- |
|
|
FA7364 |
1 |
Drum Switch |
Contact |
| 30- |
|
|
FA7364-1 |
1 |
Drum Switch Lever |
Contact |
| 30- |
|
|
41672 |
1 |
M5 x 45 PHMS, Plated |
Contact |
| 31- |
|
BH-7535-69 |
FJ7668 |
1 |
Branch Tee |
$42.78 |
| 32- |
|
BH-7512-41 |
FJ837 |
1 |
Power Unit Hose |
$54.94 |
| 33- |
|
|
|
1 |
Power Unit |
Contact |
| 34- |
|
|
40678 |
1 |
5/16" -18NC Hex Flanged Lock Nut |
Contact |
| 35- |
|
|
40509 |
1 |
5/16" - 18NC x 1-1/2" Flanged HHCS (Full Thread) |
Contact |
| 36- |
|
BH-7545-02 |
N822 |
1 |
Carriage Yoke Weldment |
$1,848.59 |
| 37- |
|
|
FF729 |
1 |
Wheel Spotter Dish Kit - Single Position - with Anchors |
Contact |
| 38- |
|
BH-7510-03 |
FJ7360 |
1 |
Slider Block |
$38.61 |
| 38- |
|
BH-7512-23 |
FJ842 |
1 |
Overhead Hose - EH-1 Model |
$276.47 |
| 38- |
|
BH-7512-24 |
FJ843 |
1 |
Overhead Hose - EH-2 Model |
$249.60 |
| 39- |
|
BH-7075-03-20 |
FJ7380 |
1 |
Anchor - Zinc Plated Steel Wedge 3/4" x 5-1/2" - Box of 20 |
$110.65 |
| 39- |
|
BH-7529-92 |
N378 |
2 |
Equalizer Cables - EH-1 Model |
$96.39 |
| 39- |
|
BH-7529-88 |
N373 |
2 |
Equalizer Cables - EH-2 Model |
$114.44 |
| 40- |
|
BH-7545-01 |
N619 |
1 |
Cable End Bracket |
$11.88 |
| 41- |
|
BH-7545-01A |
N618 |
1 |
Cable Guide |
$20.93 |
| 42- |
|
|
40641 |
1 |
1/4" -20NC Flanged Locknut |
Contact |
| 43- |
|
|
40108 |
1 |
1/4" -20NC x 1" HHCS Grade 5 |
Contact |
| 44- |
|
|
|
1 |
Bleeder Screw (Specify Manufacturer) |
Contact |
| 45- |
|
BH-7545-12NF |
N382 |
1 |
Hydraulic Cylinder - 71" Rise |
$1,156.68 |
| 46- |
|
BH-7545-03 |
N752 |
1 |
L.H. Column Standard Weldment |
Contact |
| 47- |
|
BH-7508-20 |
FJ7985-1 |
1 |
Actuator Pin Handle |
$8.82 |
| 48- |
|
BH-7528-07 |
N121-1 |
1 |
Actuator Pin |
$50.95 |
| 49- |
|
|
FA941 |
1 |
Carriage Bumper |
Contact |
| 50- |
|
BH-7512-62 |
FJ7391-1 |
1 |
Approach Bumper |
$451.29 |
| 51- |
|
BH-7508-42 |
N2148 |
1 |
Arm Restraint Kit (1 Arm) *NOTE: Includes items 12, 13, 14, 15, 18 & 57. Also includes Restraint Gears and attaching hardware (items 20, 21 & 22) from Arm Detail section. |
$128.92 |
| 52- |
|
BH-7519-28 |
14427 |
1 |
Spring Pin - 1/4" dia. X 1-1/2" Lg. (Stainless) |
$11.15 |
| 53- |
|
BH-7545-17 |
N2121 |
1 |
Arm Restraint Pawl |
$46.81 |
| 54- |
|
BH-7535-58 |
FJ7656-2 |
1 |
Arm Restraint Spring |
$16.95 |
| 55- |
|
BH-7528-06 |
N119-3 |
1 |
Retaining Pin |
$11.07 |
| 57- |
|
BH-7502-33 |
N119-1 |
1 |
Sheave Cover |
$25.33 |
| 58- |
|
BH-7535-62 |
FJ7659-3 |
1 |
Front Shim |
Contact |
| 59- |
|
BH-7512-90 |
FJ716-6 |
1 |
Shim |
$30.19 |
| 62- |
|
|
N768 |
1 |
R.H. Column Standard Weldment |
Contact |
| 63- |
|
|
N766 |
1 |
L.H. Column Seismic Weldment |
Contact |
