Rotary SL210 (500 Series)

Name: SVI International, LLC
Address: 155 Harvestore Drive, DeKalb, IL, 60115, US
Telephone: 800-321-8173

Rotary

Model:

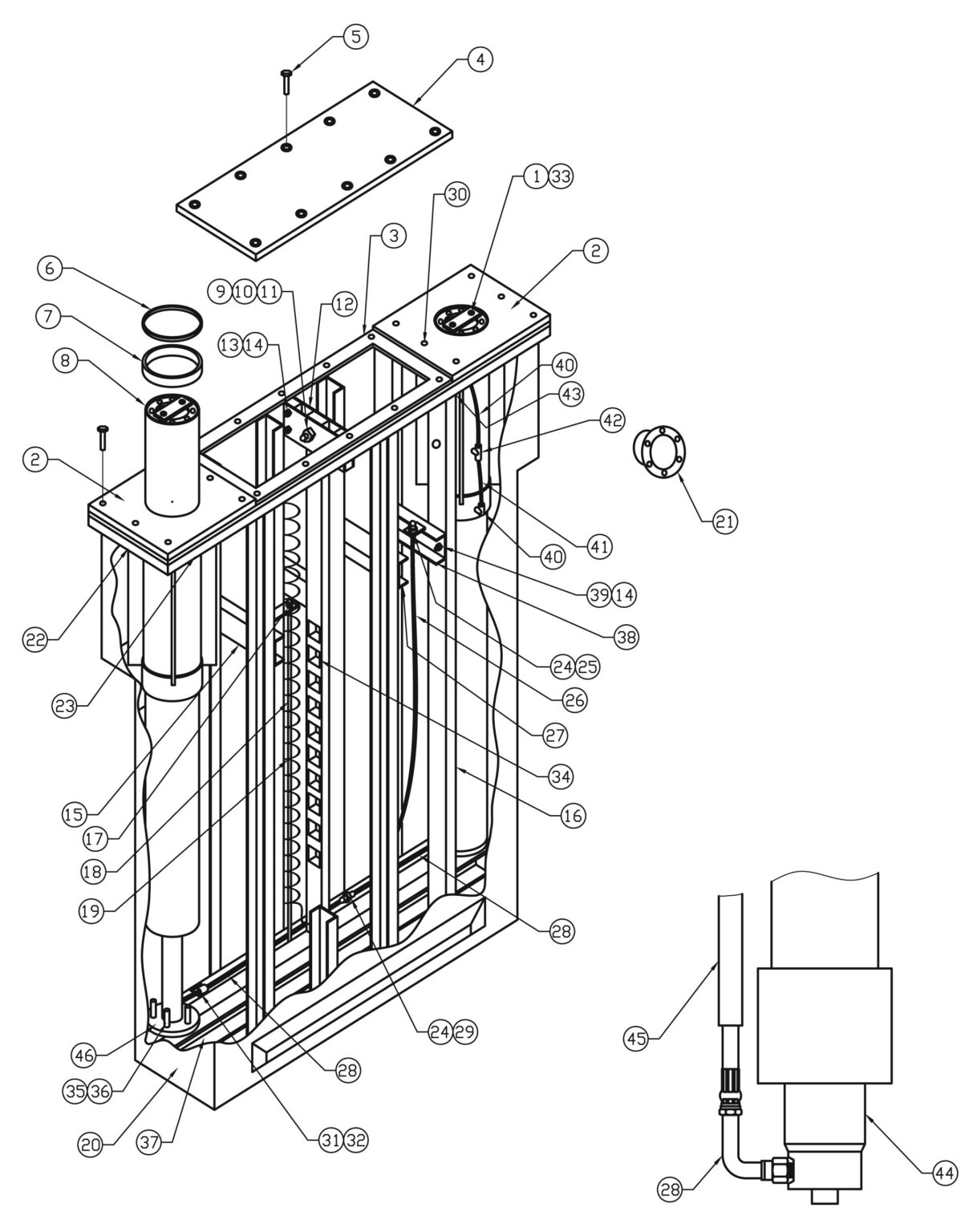

Item	SVI Part #	OEM Ref #	QTY Per Equipment	Description	Price
1-	BH-7521-08	T120166	2	Lift Bar Weldment	$182.43
2-		T110149	2	Guide Barrel Assy. (w/Nylon Tubes & Fittings)	Contact
3-	BH-9786-51	T140163	1	One Piece Gasket	$620.52
4-	BH-9786-45	T120190	1	Cover Plate	$501.74
5-		40268	20	1/2-13NC x 2" Self Tap, Grade 5, Plated Full Thread	Contact
6-	BH-9786-23	T140118	2	Wiper Seal	$164.73
7-	BH-9786-24	T140148	2	Bearing	$114.07
8-	BH-9784-95	T120161	2	Plunger	$8,030.82
9-		40606	1	1-1/8-7NC x 3" Gr. 5, Plated	Contact
10-		40608	1	1-1/8" Int. Tooth Lock Washer, Plated	Contact
11-		40607	1	1-1/8-7NC Hex Nut, Plated	Contact
12-	BH-9785-24	T130342	2	Latch Bar Plate	Contact
13-		40338	4	1/2-13NC x 2-1/2" HHCS	Contact
14-		40704	8	1/2-13NC Hex Flanged Whizlock Nut, Plated	Contact
15-		T120157	1	Conduit Bracket Assembly	Contact
16-		T120164	1	Frame Weldment	Contact
17-		40640	2	1/4-20NC Hex Jam Nut	Contact
18-	BH-9784-32	T130338	1	Air Coil Hose Rod	$73.91
19-	BH-7544-12	T140096	1	Air Coil Hose	$114.07
20-		T140124	1	Containment (w/Uniseal Hole Drilled)	Contact
21-	BH-9785-95	T140023	1	2" Uniseal	Contact
22-		T120197	2	Anchor Frame End	Contact
23-		T120198	2	Anchor Frame Side	Contact
24-		40998	2	9/16" Int. Tooth Lockwasher, Plated	Contact
25-		T140132	1	Bulkhead Adapter	Contact
26-	BH-9784-27	T140170, T110281	1	Vertical Hose	$273.23
27-		T130345	2	Short Tie Channel	Contact
28-	BH-7521-07	T140169	2	Plunger Hose	$222.44
29-		T140134	1	SS Bulkhead Union Tee	Contact
30-	BH-9785-86	T140007	2	Zerk Fitting L#5000 1/8" Pipe	$9.49
31-	F-PH-0312-18-0375	40227	3	5/16-18NC x 3/8" Phillips Pan Head Machine Screw, Plated	Original price was: $1.97.Current price is: $0.98.
32-	BH-7534-77	FJ7499	3	Hose Clip	$20.34
33-	BH-7521-09	40337	4	1/2-13NC x 1-1/4" Countersunk Socket Head Cap Screw	$16.42
34-		T130341	1	Latch Bar	Contact
35-		40343	12	5/8-11NC x 2-1/2" Hex Soc. Head Cap Screw	Contact
36-		40961	12	5/8" Helical Spring Lockwasher, Plated	Contact
37-		T120226	1	Equalizer	Contact
38-		T120158	1	Hose Bracket Assembly	Contact
39-		40261	8	1/2-13NC x 1" HHCS	Contact
40-	BH-9786-28	T100147	2	Guide Barrel Fitting Kit	Contact
41-	BH-9786-41	T130191	6	1/4" Nylon Tube (11-1/8" long)	Contact
42-	BH-7526-88	FC5225-46	2	Union Tee	$42.78
43-	BH-7526-89	FC5225-47	2	Male Connector for Nylon Tube	$11.92
44-	BH-9787-12	N367	2	Hydraulic Cylinder	$1,382.27
45-		T140166	2	Hose Support Tube	Contact
46-	BH-9786-46	T130382ML	1	Load Pad	$143.99
