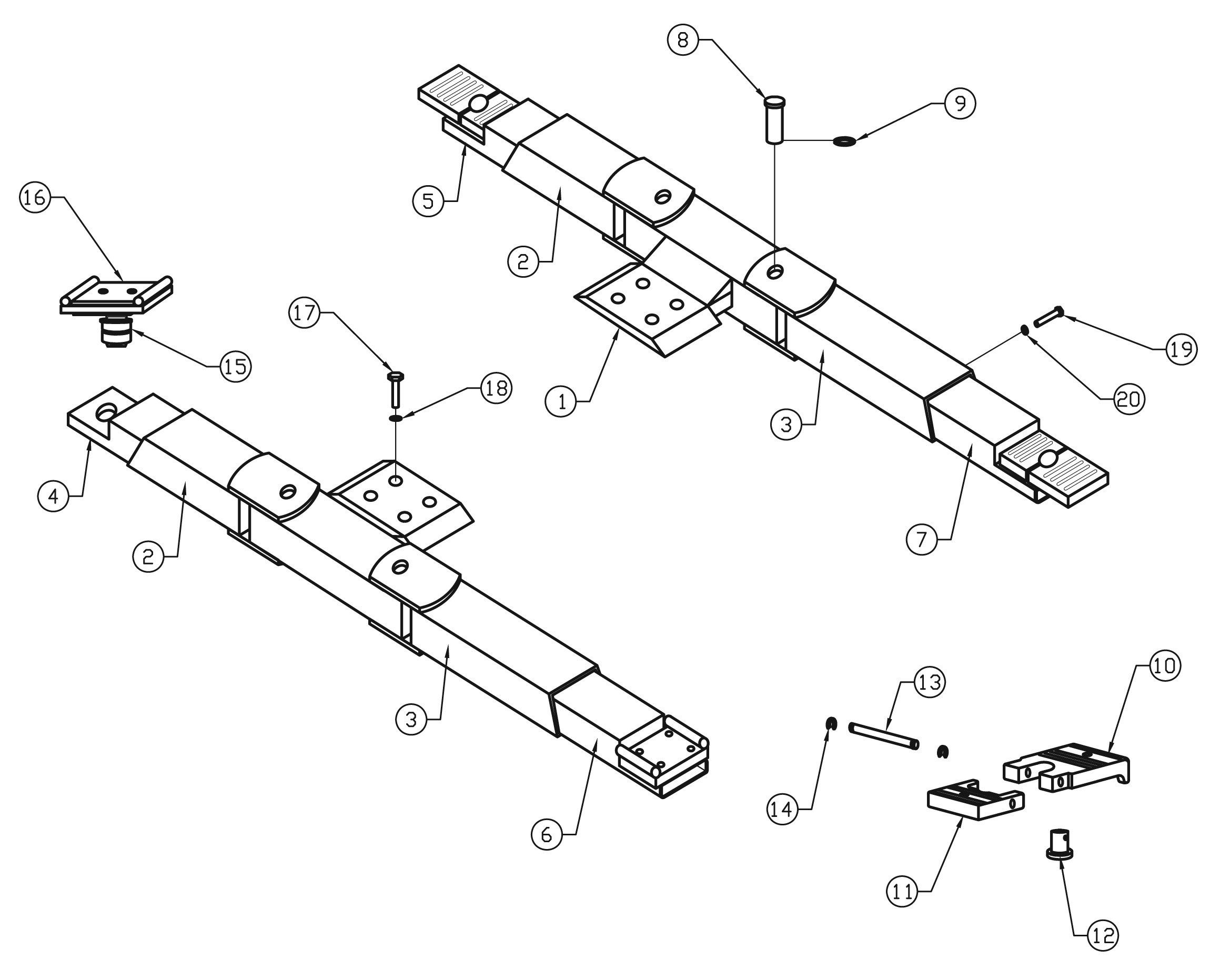

Rotary SL210 (500 Series) Superstructure Replacement Parts & Diagram

Rotary SL210 (500 Series) Superstructure Replacement Parts & Diagram

Rotary
Model:
SL210

Superstructure

Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
1- T120221 2 Yoke Contact
2- T120218 2 **Short Outer Arm "Short" identified by first segment OAL = 23-7/8" Contact
3- BH-9784-94 T120217 2 **Long Outer Arm - Yellow "Long" identified by first segment OAL = 28-1/8" Contact
3- BH-9784-94A T120217 2 **Long Outer Arm - Blue "Long" identified by first segment OAL = 28-1/8" Contact
4- T120224 2 **Short Inner Arm (Rubber Pad Adapters) "Short" identified by first segment OAL = 23-7/8" Contact
5- BH-9786-43 T120220 2 **Short Inner Arm Assy. (Flip-Up Adapters) - Yellow "Short" identified by first segment OAL = 23-7/8" Contact
5- BH-9786-43A T120220 2 **Short Inner Arm Assy. (Flip-Up Adapters) - Blue "Short" identified by first segment OAL = 23-7/8" Contact
6- T120223 2 **Long Inner Arm (Rubber Pad Adapters) "Long" identified by first segment OAL = 28-1/8" Contact
7- BH-9786-42 T120219 2 **Long Inner Arm Assy. (Flip-Up Adapters) - Blue "Long" identified by first segment OAL = 28-1/8" Contact
7- BH-9786-42A T120219 2 **Long Inner Arm Assy. (Flip-Up Adapters) - Yellow "Long" identified by first segment OAL = 28-1/8" Contact
8- BH-9784-22 T130451 4 Arm Pin $87.22
9- T140168 4 Arm Pin Retaining Ring Contact
10- BH-9755-20 FJ6177 4 High Step Adapter $111.96
11- BH-9755-21 FJ6178 4 Low Step Adapter $45.17
12- BH-9755-25L FJ79-6 4 Adapter Swivel Pin $42.07
13- BH-7533-60 FJ6179 4 Adapter Pin $18.22
14- BH-9755-26 FJ671-6 8 3/32" Hog Ring for 1/2" Shaft Original price was: $0.75.Current price is: $0.37.
15- BH-7536-96 FJ6182 4 Adapter Assembly $296.19
15a- BH-7542-75K FJ6258 1 Adapter Base and Pad Kit for GM Trucks - 2" Pin (Set of 2)(Front) $916.72
15b- BH-7542-75 FJ6258x 2 Adapter Base and Pad Assembly for GM Trucks - 2" Pin(Front) $458.36
16- BH-7536-92P FJ6158-4 4 Rubber Pad $17.56
17- 40498 8 7/8-9NC x 3-1/2" HHCS Contact
18- 41072 8 7/8" Ext. Tooth Lockwasher, Plated Contact
19- 40155 4 3/8-16NC x 5/8" HHCS Contact
20- 40843 4 3/8" Internal Tooth Lockwasher Contact
View More: Lift Repair Parts & Equipment

Related Breakdowns

related breakdown

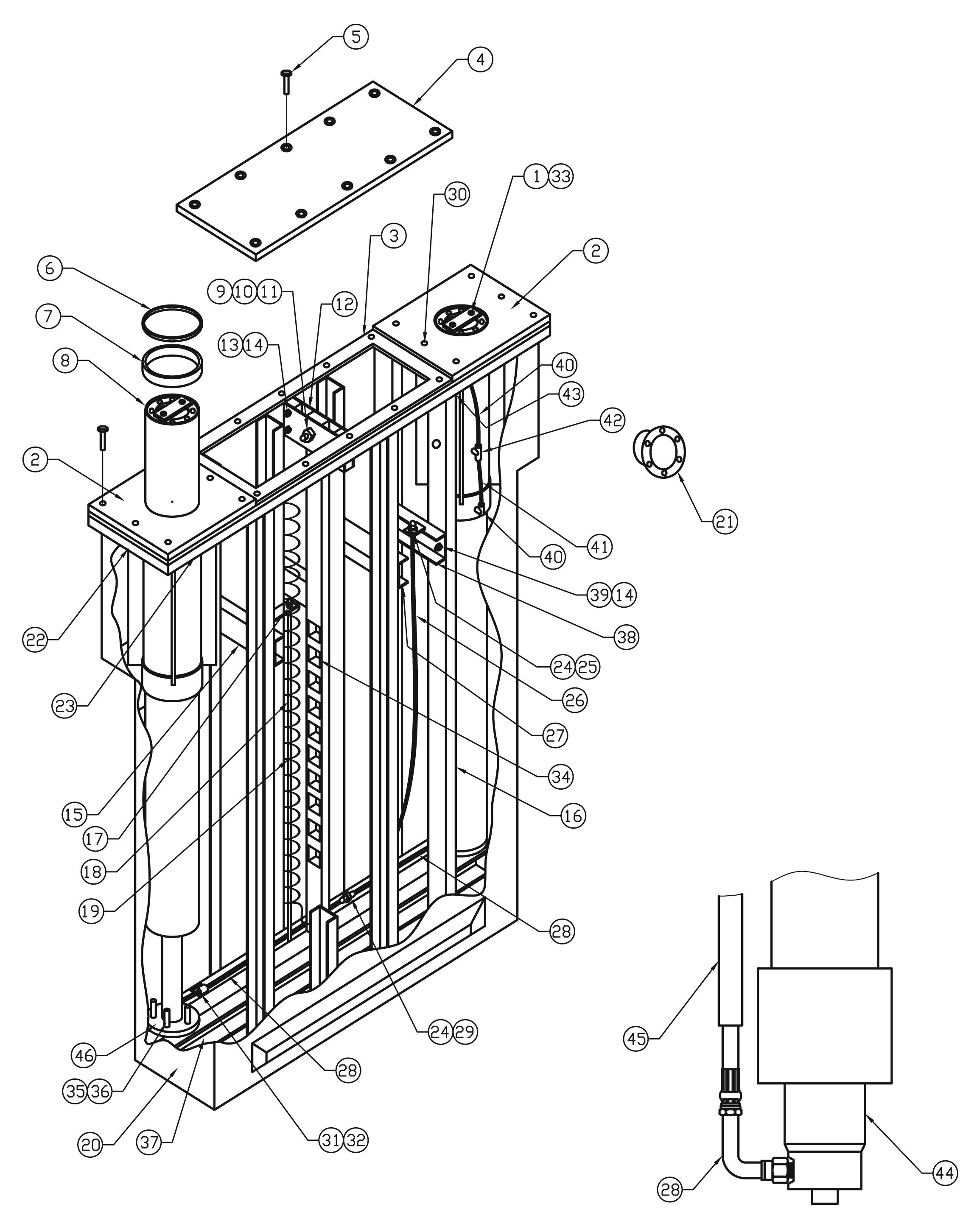

Rotary SL210 (500 Series)
related breakdown

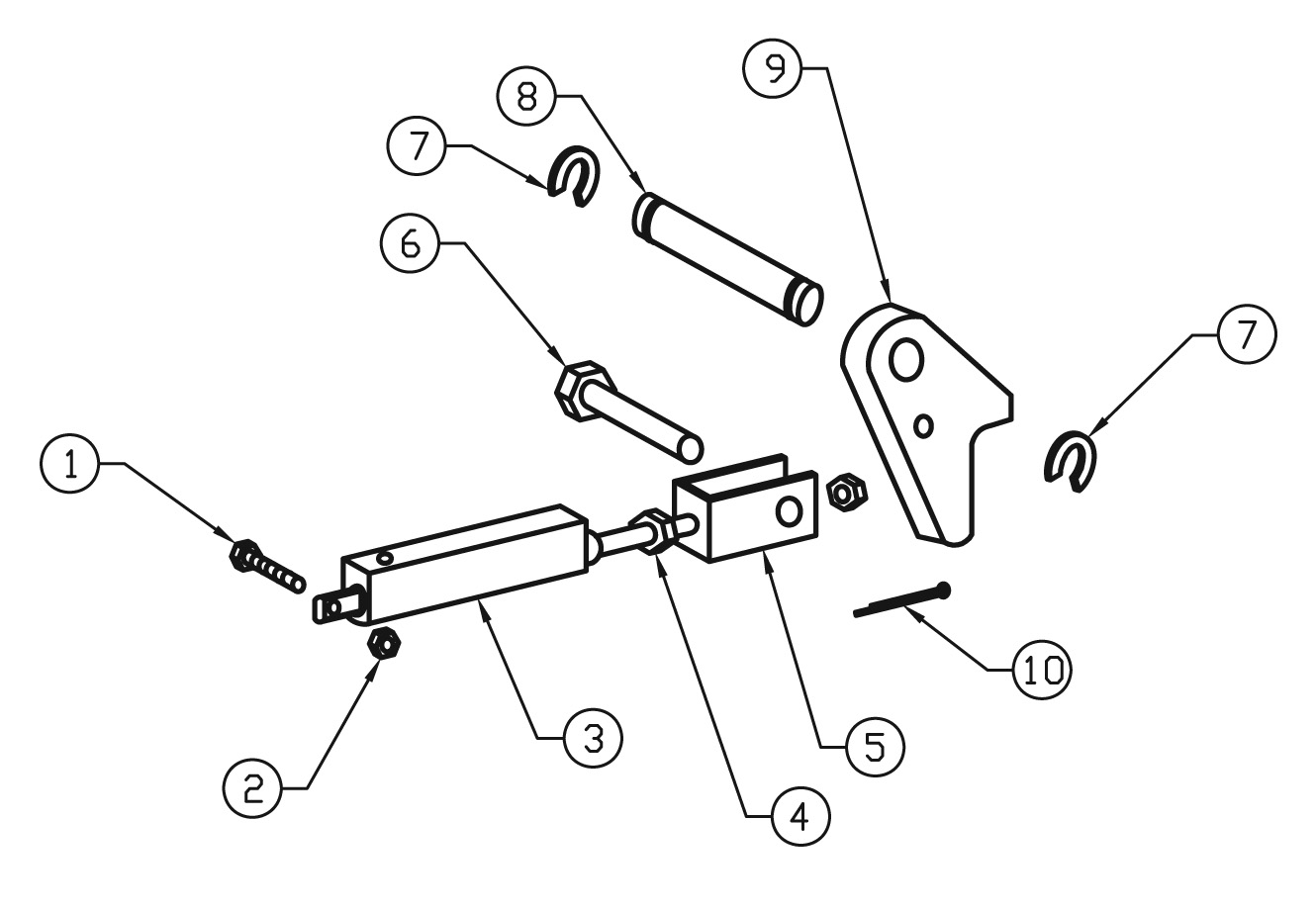

Rotary SL210 (500 Series) Lock Detail
related breakdown

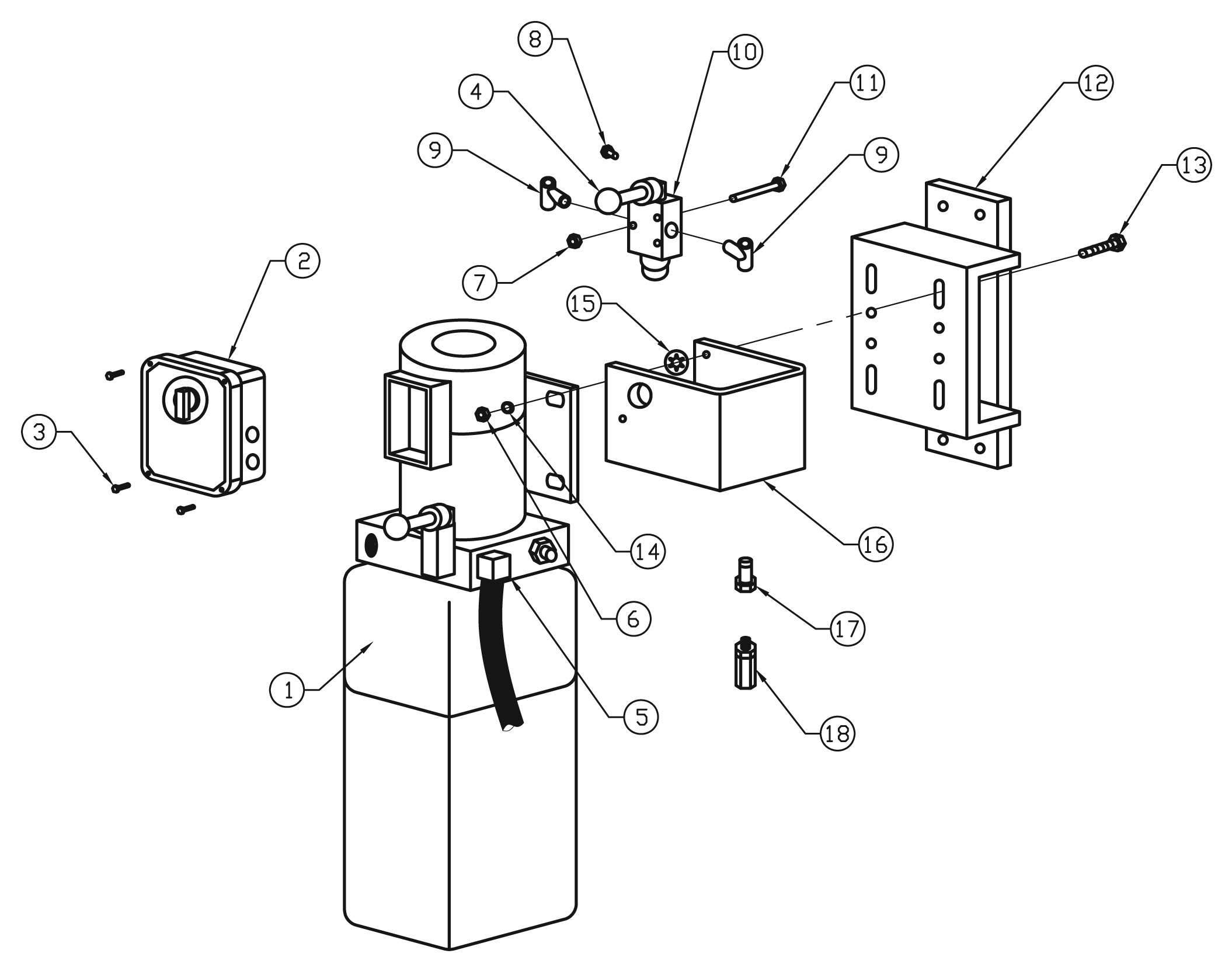

Rotary SL210 (500 Series) Power Unit
