Quality Lifts 12000S

Name: SVI International, LLC
Address: 155 Harvestore Drive, DeKalb, IL, 60115, US
Telephone: 800-321-8173

Quality Lifts

Model:

12000S

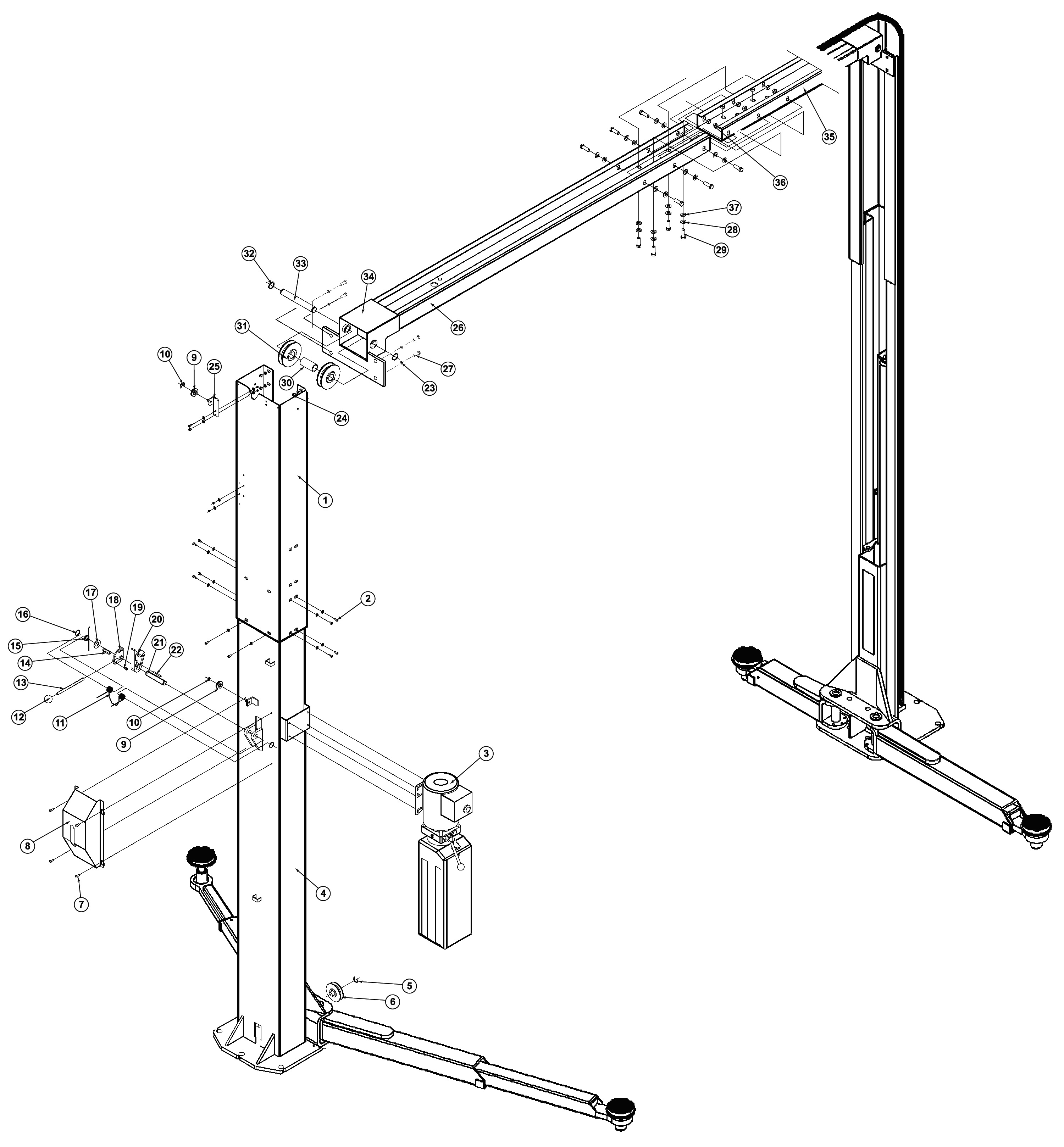

Item	SVI Part #	OEM Ref #	QTY Per Equipment	Description	Price
1-		27M80110	2	Column Extension	Contact
2-		WBM1020	20	Socket Head Bolt	Contact
3-		AB-1534	1	Power Unit	Contact
4-		27M02000	2	Column	Contact
5-		SN-E15	2	E-Snap Ring	Contact
6-	BH-7233-151	27M06160	2	Pulley	$43.19
7-		TRTBM0608	4	Pan Head Screw	Contact
8a-	BH-7233-244	26K06185	1	Lock Release Cover - Power Side	$16.28
8b-	BH-7233-243	26K06195	1	Lock Release Cover - Idler Side	$19.17
9-	BH-7233-141	26K06120	4	Lock Release Pulley	Contact
10-		SN-E08	4	E-Snap Ring	Contact
11-	BH-7233-142	26K06140	2	Lock Release Spring 1	$7.65
12-	BH-7233-143	PHANDLE30M10	1	Lock Release Handle	Contact
13-	BH-7233-144	26K70140	1	Lock Release Shaft	Contact
14-	BH-7233-112	26K06090	2	Lock Release Wire Pin	Contact
15-	BH-7234-36	26K06130	2	Lock Release Spring 2	$2.70
16-		SN-E19	4	E-Snap Ring	Contact
17-	BH-7233-146	26K06210	2	Lock Spacer	Contact
18-	BH-7233-147	26K06080	2	Lock Release Connector	Contact
19-		WBM0615	2	Connector Bolt	Contact
20-		26K06110	2	Lock Pawl	Contact
21-		26K06100	2	Lock Release Shaft	Contact
22-	BH-7233-118	SPIN0640	2	Spring Pin	$3.17
23-		WPM10	8	Flat Washer	Contact
24-		HNM10	8	Hex Nut	Contact
25-	BH-7233-150	26K02150R	1	Lock Release Bracket (Right)	Contact
25-		26K02150L	1	Lock Release Bracket (Left)	Contact
26-		27M76100	1	Overhead	Contact
27-		HEXM1025	8	Hex Bolt	Contact
28-		WSM10	10	Spring Washer	Contact
29-		HEXM1025	10	Hex Bolt	Contact
30-	BH-7233-103	26K40510	2	Pulley Spacer	$7.20
31-	BH-7233-151	27M06160	4	Pulley	$43.19
32-		SN-CS20	4	Snap Ring	Contact
33-	BH-7233-102	26K40010	2	Pulley Shaft	$11.00
34-		27M76300	1	Overhead (1)	Contact
35-		27M32000	1	Overhead (2)	Contact
36-		HNM10	10	Hex Nut	Contact
37-		WPM10	10	Flat Washer	Contact

View More: Lift Repair Parts & Equipment

Related Breakdowns

Quality Lifts 12000S Carriage Arms and Cylinder

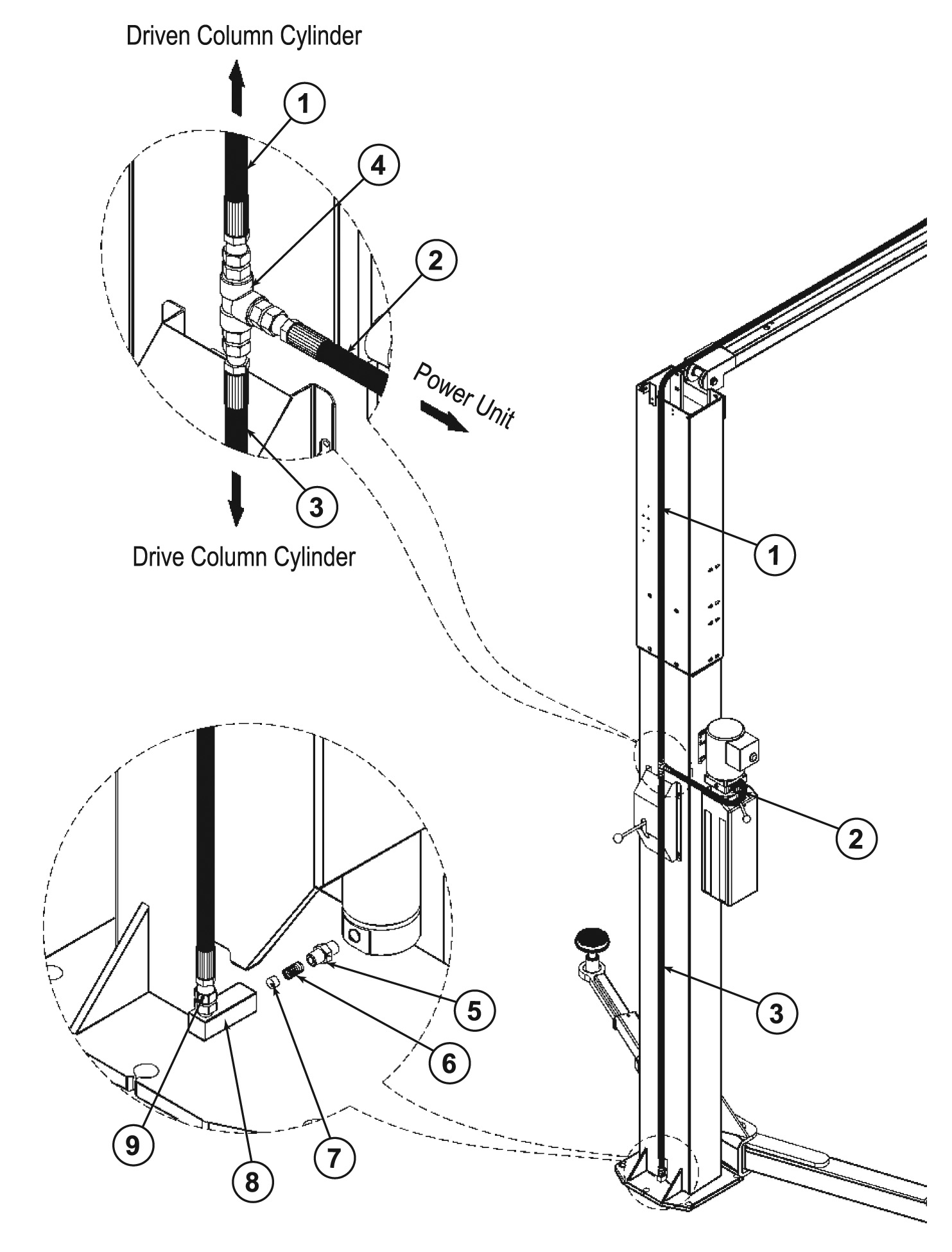

Quality Lifts 12000S Hydraulics

Quality Lifts 12000S Model 12000S Carriage, Arms and Cylinder

Quality Lifts 12000S Model 12000S Column and Lock

Quality Lifts 12000S Model 12000S Hydraulics

Quality Lifts 12000S Model 12000S Overhead

Quality Lifts 12000S Model 12000S Synchronization

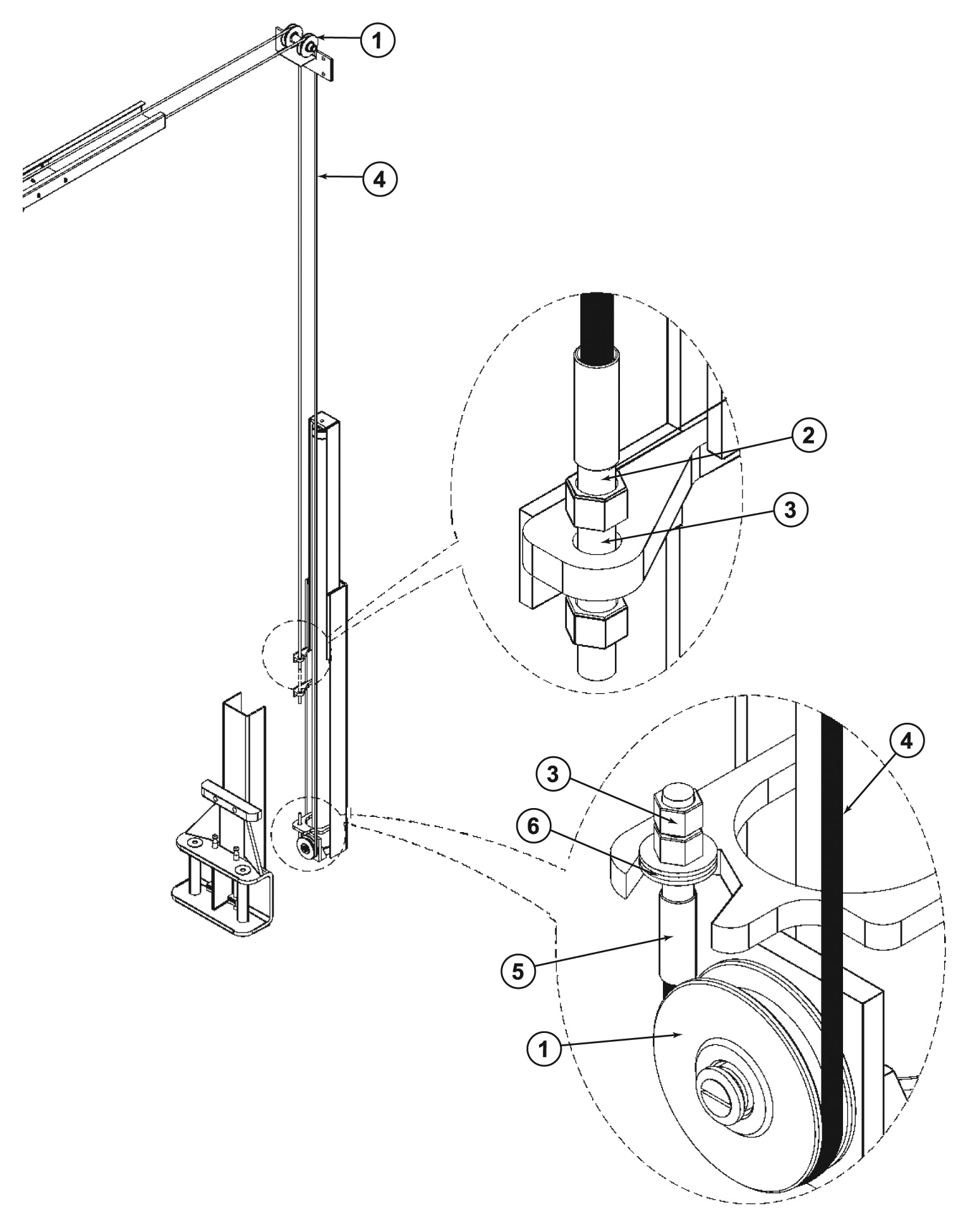

Quality Lifts 12000S Synchronization
