Manitowoc Lifts A-12D3A

Manitowoc Lifts A-12D3A

Manitowoc Lifts
Model:
A-12D3A

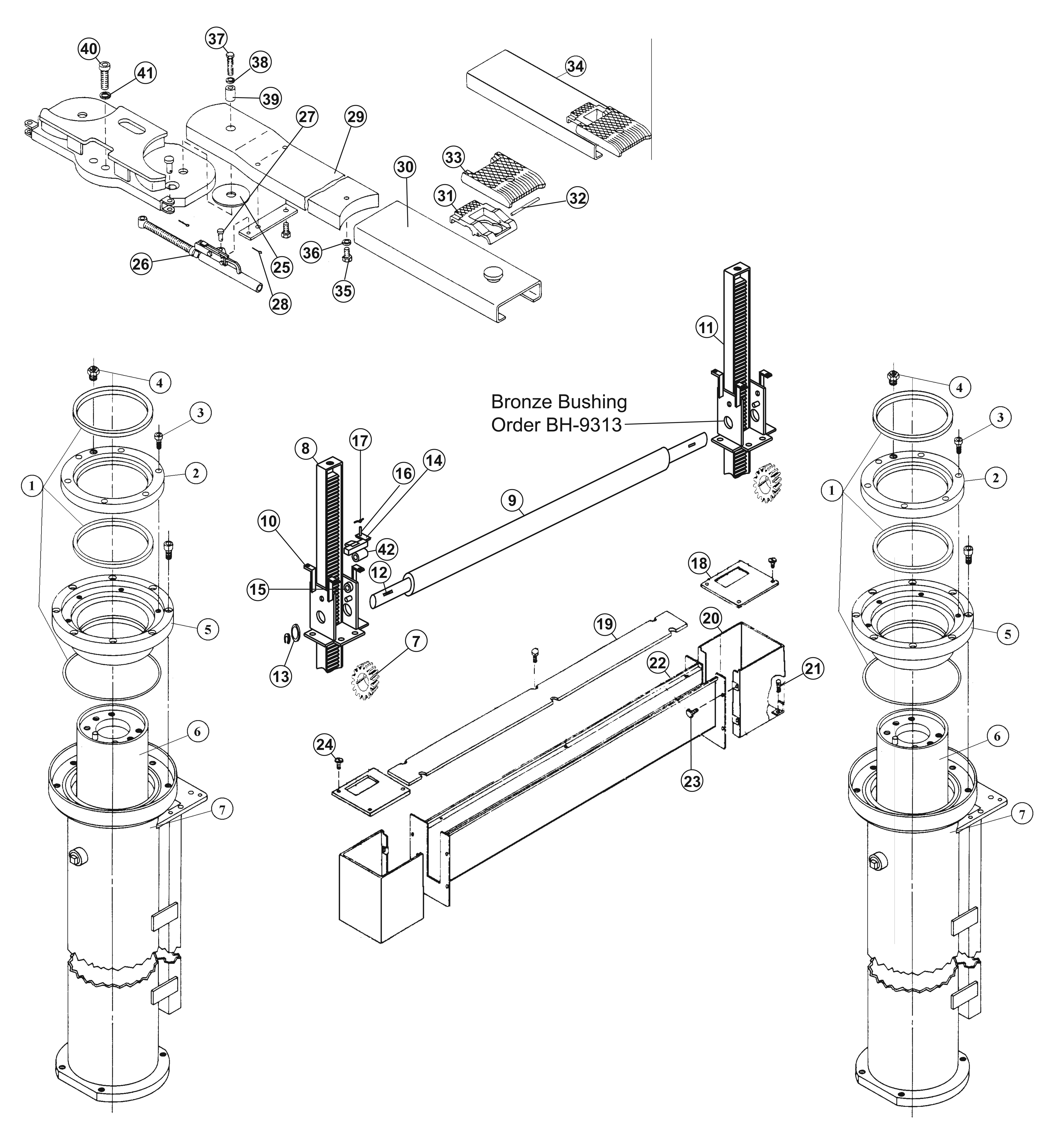

Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
--- BH-9313-23C ** 1 Automatic Lock Latch Kit Includes #14-17 $209.12
--- BH-9312-40 **** 1 40" Equalizer Assembly Includes #9-13 $1,088.43
--- BH-9312-40L **** 1 40" Equalizer Assembly with Lock Includes #9-17 Contact
--- BH-9312-57 **** 1 57-1/2" Equalizer Assembly Includes #9-13 $950.49
--- BH-9312-57L **** 1 57-1/2" Equalizer Assembly with Lock Includes #9-17 $1,216.84
--- BH-9312-89 **** 1 89" Equalizer Assembly Includes #9-13 Contact
--- BH-9312-89L **** 1 89" Equalizer Assembly with Lock Includes #9-17 Contact
--- BH-9312-40C * 1 Complete 40" Equalizer Assembly Includes #7-13 Contact
--- BH-9312-40LC * 1 Complete 40" Equalizer Assembly with Lock Includes #7-17 $2,805.76
--- BH-9312-57C * 1 Complete 57" Equalizer Assembly Includes #7-13 $2,531.18
--- BH-9312-57LC * 1 Complete 57" Equalizer Assembly with Lock Includes #7-17 $2,743.50
--- BH-9312-89C * 1 Complete 89" Equalizer Assembly Includes #7-13 $2,715.99
--- BH-9312-89LC * 1 Complete 89" Equalizer Assembly with Lock Includes #7-17 $2,928.26
--- R18219-G1 1 Oil Tank with Bottom Outlet Contact
1- BH-1715 K34152 2 Hoist Packing Kits (8-1/2") $254.75
1- BH-1707 K34115 2 Hoist Packing Kits (7-1/2") $240.34
2- BH-9313-32 T13915-01 2 Wiper Ring Retainer (8-1/2") $657.24
2- BH-9313-40 R13052-11 2 Wiper Ring Retainer (7-1/2") Contact
3- Q10034-28 12 Socket Head Cap Screw Contact
4- BH-9321-07 N21812-G1 2 Air Vent $40.93
5- BH-9313-33 T13911-02 2 Upper Bearing (8-1/2") $1,880.36
5- BH-9313-36 K34342 2 Upper Bearing (7-1/2") Contact
6- BH-9313-34 K92930 2 Plunger (8-1/2") 12D & 12L $5,032.21
6- BH-9321-03 K92931 2 Plunger (8-1/2") 12E & 12N Contact
6- BH-9321-03 T13948-G1 2 Plunger (10-5/8") (K92937) Contact
6- BH-9321-03A T11935-04 2 Plunger (7-1/2") Contact
7- BH-9311 K87046 2 Pinion Gear $254.00
8- BH-9310 N19253 2 Rack Bar $1,150.83
8a- BH-9310-SLV 1 Rack Bar Guide Tube Sleeve $731.36
9- BH-9312-00 N19303-01 1 40" Equalizer Shaft $392.55
9- BH-9312-01 N19303-03 1 57-1/2" Equalizer Shaft $418.53
9- BH-9312-02 N19303-02 1 89" Equalizer Shaft $493.58
10- BH-9314 R13422 1 Left Equalizer Bracket $479.14
11- BH-9315 R13423 1 Right Equalizer Bracket $466.37
12- BH-9618-06 K07536-01 2 Woodruff Key $3.37
13- BH-9614-05 K74051 2 Retaining Ring (K65235-24) $3.37
13b- K65235-24 1 Flat Washer Contact
14- BH-9313-23 R13382 1 Automatic Lock Latch $171.70
15- BH-9313-24 K87045 1 Latch Shaft $20.42
16- BH-9313-21 K88435 1 Auto Lock Latch Handle $20.42
17- BH-9313-25 N19704 1 Auto Lock Latch Spring $17.50
18- BH-9313-08 R13105 2 Equalizer Box End Cover $80.82
19- R13065-02 1 Equalizer Box Center Cover 40" Contact
19- BH-9313-10B R13065-01 1 Equalizer Box Center Cover 57" $283.25
19- BH-9313-10C R13065 1 Equalizer Box Center Cover 89" Contact
20- BH-9313-04 N19263 2 Equalizer Box End Section $281.08
21- K05287 4 Hex Head Bolt Contact
22- N19271-04 1 Equalizer Box Center Section 40" Contact
22- BH-9313-03B N19271-01 1 Equalizer Box Center Section 57" $851.44
22- BH-9313-03C N19271 1 Equalizer Box Center Section 89" $881.46
23- K05287 8 Hex Head Bolt Contact
24- K02879 8 Round Head Screw Contact
25- BH-9320-08 K87033 4 Swing Arm Washer $25.98
26- BH-9320-09L R18254-G2 2 Left Arm Restraint $562.17
26- BH-9320-09R R18254-G1 2 Right Arm Restraint $562.17
27- R18230-245 4 Clevis Pin Contact
28- K02128 8 Cotter Pin Contact
29- BH-9324-09 N20275 4 Swing Arm $948.64
29- N21841 4 Swing Arm Restraint Style Contact
30- R12956-02 4 Sliding Base Assembly Contact
31- BH-9320-05 R12709-02 4 Swivel Base Assembly $127.00
32- BH-9320-06 Q10038-04 4 Swivel Pin $11.67
33- BH-9320-04 R16123-02 4 Pick Up Pad $204.93
34- BH-9324-10 N20366-02 4 Sleeve and Adapter Assembly $649.44
35- K01909 12 Hex Head Cap Screw Contact
36- K02455 4 Lockwasher Contact
37- K78272 4 Hex Head Cap Screw Contact
38- K02215 4 Lockwasher Contact
39- BH-9320-11 K85825 4 Swing Arm Pivot $17.50
40- Q10035-34 8 Socket Head Cap Screw Contact
41- K02216 8 Lockwasher Contact
42- K87287-20 1 Set Screw for Lock Latch Contact
