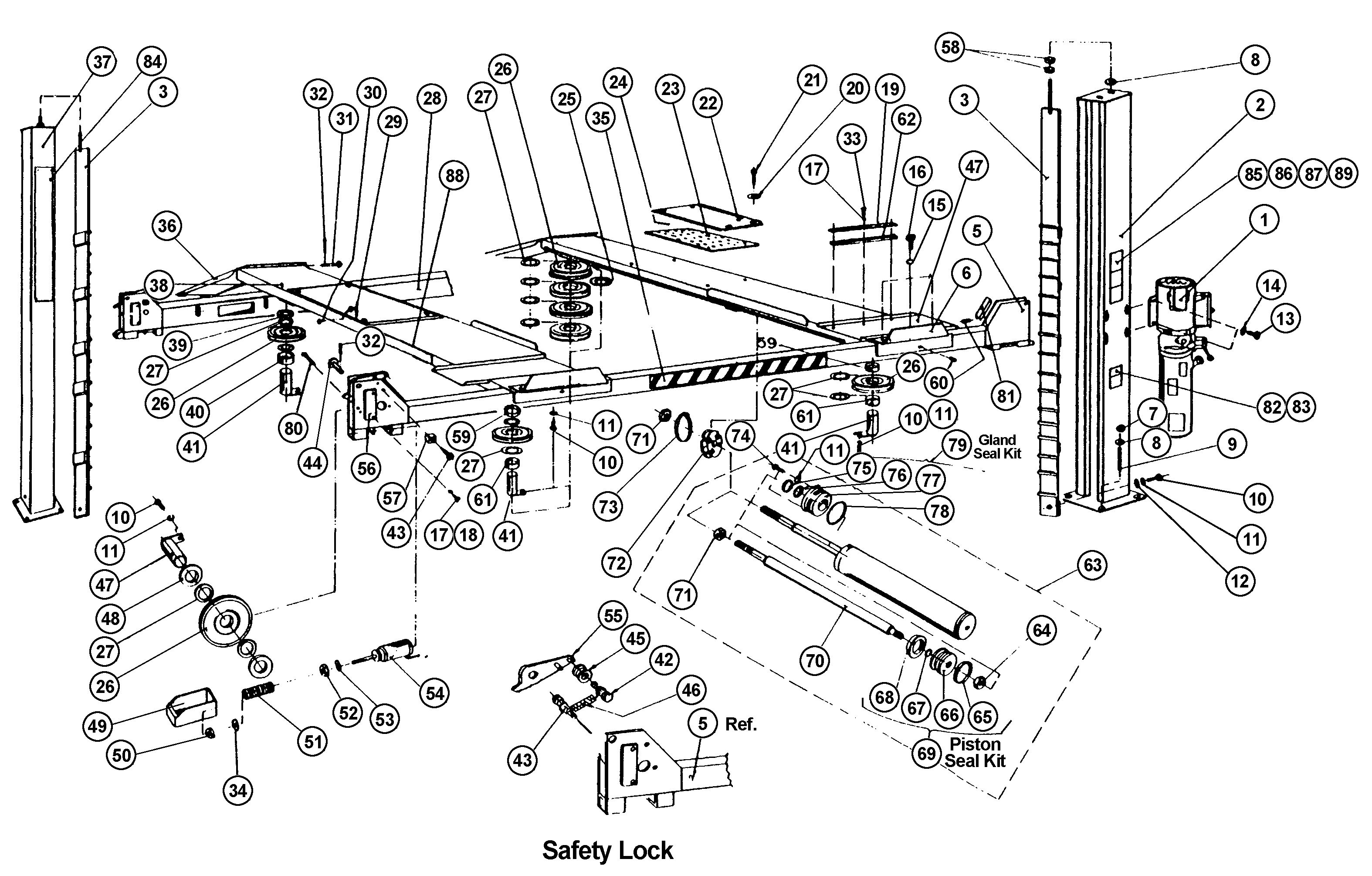

| 1- |
|
BH-7801-91 |
6-0650 |
1 |
Power Pack, 230V/1 PH |
Contact |
| 2- |
|
BH-7799-40 |
4-0186 |
1 |
Power Post |
Contact |
| 3- |
|
BH-7799-43 |
4-0191 |
4 |
Safety Rack |
Contact |
| 4- |
|
BH-7799-51 |
4-0222 |
1 |
Alignment Deck, L.H. |
Contact |
| 4a- |
|
BH-7799-60 |
4-0272 |
1 |
Service Deck, L.H. - for Model 10400 |
Contact |
| 5- |
|
BH-7799-42 |
4-0190 |
1 |
Front Crossmember |
Contact |
| 6- |
|
BH-7795-04 |
2-0998 |
2 |
Front Wheel Stop |
Contact |
| 7- |
|
|
6-0737 |
16 |
Hex Nut, 3/4"-10 |
Contact |
| 8- |
|
|
6-0738 |
20 |
Flat Washer, 3/4" |
Contact |
| 9- |
|
BH-7802-42 |
6-0736 |
16 |
Wedge Anchor, 3/4"-10 x 4-3/4" |
Contact |
| 10- |
|
|
6-0668 |
12 |
Hex Hd. Bolt, 3/8"-16 x 1" Gr. 8 |
Contact |
| 11- |
|
|
6-0058 |
14 |
Lock Washer, 3/8" |
Contact |
| 12- |
|
|
6-0062 |
8 |
Flat Washer, 3/8" |
Contact |
| 13- |
|
|
6-0423 |
4 |
Hex Hd. Bolt, 5/16"-18 x 3/4" |
Contact |
| 14- |
|
|
6-0674 |
4 |
Lock Washer, 5/16" |
Contact |
| 15- |
|
|
6-0059 |
6 |
Lock Washer, 1/2" |
Contact |
| 16- |
|
|
6-0045 |
6 |
Hex Hd. Bolt, 1/2"-13 x 1" |
Contact |
| 17- |
|
|
6-0056 |
28 |
Lock Washer, 1/4" |
Contact |
| 18- |
|
|
6-0178 |
16 |
Hex Hd. Bolt., 1/4"-20 x 3/4" |
Contact |
| 19- |
|
BH-7805-44 |
2-1041 |
4 |
Retaining Bar |
Contact |
| 20- |
|
|
6-0426 |
8 |
Flat Washer, 13/32" x 2" |
Contact |
| 21- |
|
|
6-0069 |
8 |
Shoulder Bolt, 3/8" x 5/8" |
Contact |
| 22- |
|
BH-7796-49 |
3-0197 |
2 |
Rear Slip Plate |
$2,359.71 |
| 23- |
|
BH-7790-34 |
3-0196 |
2 |
Bearing Cage |
$980.53 |
| 24- |
|
BH-7790-35 |
6-0829 |
1 |
Bag of 1/4" Ball Bearings (460pcs) |
$120.50 |
| 25- |
|
BH-7792-25 |
1-0787 |
1 |
1/2" Lg. Sheave Spacer |
$29.49 |
| 26- |
|
BH-7794-19 |
2-0557 |
11 |
Sheave Assembly |
$165.49 |
| 27- |
|
BH-7792-15 |
1-0757 |
21 |
Nylon Thrust Washer |
$3.73 |
| 28- |
|
BH-7799-41 |
4-0188 |
1 |
Rear Crossmember |
Contact |
| 29- |
|
BH-7794-37 |
2-0637 |
4 |
Locking Pin Assembly |
$68.23 |
| 30- |
|
|
6-0505 |
4 |
Self-Tap. Screw, #10 x 1/2" |
Contact |
| 31- |
|
BH-7791-19 |
1-0095 |
2 |
Ramp Pin |
$352.24 |
| 32- |
|
BH-7798-76 |
6-0015 |
6 |
Cotter Pin, 1/8" x 2" |
Contact |
| 33- |
|
|
6-0027 |
12 |
Hex Hd. Bolt, 1/4"-20 x 1-1/4" |
Contact |
| 34- |
|
|
6-0060 |
8 |
Flat Washer, 1/4" |
Contact |
| 35- |
|
BH-7805-46 |
6-1125 |
2 |
Caution Tape |
Contact |
| 36- |
|
BH-7796-61 |
3-0285 |
2 |
Approach Ramp |
Contact |
| 37- |
|
BH-7796-80 |
3-0347 |
3 |
Post |
Contact |
| 38- |
|
BH-7799-50 |
4-0221 |
1 |
Alignment Deck, R.H. |
Contact |
| 38a- |
|
BH-7799-63 |
4-0305 |
1 |
Service Deck, R.H. - for Model 10400 |
Contact |
| 39- |
|
BH-7792-27 |
1-0798 |
1 |
Sheave Spacer, 2-1/2" |
$59.26 |
| 40- |
|
BH-7792-26 |
1-0788 |
1 |
Sheave Spacer 1-1/2" |
$57.46 |
| 41- |
|
BH-7794-23 |
2-0566 |
4 |
Deck Sheave Pin |
$160.05 |
| 42- |
|
|
6-0801 |
4 |
Shoulder Bolt, 3/8" x 1-1/2" |
Contact |
| 43- |
|
|
6-0729 |
12 |
Shoulder Bolt, 3/8" x 3/4" |
Contact |
| 44- |
|
BH-7792-20 |
1-0769 |
4 |
Lock Safety Pin |
Contact |
| 45- |
|
BH-7790-32 |
1-0766 |
4 |
Cable Roller |
$35.85 |
| 46- |
|
BH-7792-19 |
1-0768 |
4 |
Tension Spring |
$3.73 |
| 47- |
|
BH-7792-21 |
1-0771 |
4 |
Crossmember Sheave Pin |
$128.16 |
| 48- |
|
BH-7792-24 |
1-0786 |
8 |
Sheave Spacer |
$18.52 |
| 49- |
|
BH-7805-45 |
2-0890 |
4 |
Safety Shoe Weldment |
Contact |
| 50- |
|
|
6-1563 |
4 |
Hex Nylon Locknut, 1/4"-28 UNF |
Contact |
| 51- |
|
BH-7792-18 |
1-0767 |
4 |
Compression Spring |
$8.98 |
| 52- |
|
|
6-0662 |
4 |
Hex Nut, 5/8"-18 UNF |
Contact |
| 53- |
|
BH-7805-56 |
6-0663 |
4 |
Intern. Tooth Lockwasher, 5/8" |
Contact |
| 54- |
|
BH-7798-03 |
6-0651 |
4 |
Air Cyl., 5-1/2" Rod Lg. (Spr-12) |
$173.14 |
| 55- |
|
BH-7794-24 |
2-0567 |
4 |
Safety Lock Weldment |
Contact |
| 56- |
|
|
1-0775 |
8 |
Plastic Bracket |
Contact |
| 57- |
|
BH-7792-23 |
1-0776 |
8 |
Plastic Guide |
$9.97 |
| 58- |
|
|
6-0036 |
8 |
Hex Nut, 5/8"-11, Gr. 8 |
Contact |
| 59- |
|
BH-7792-28 |
1-0799 |
2 |
Sheave Spacer, 1-3/4" |
$61.06 |
| 60- |
|
|
6-0726 |
8 |
Set Screw, 1/2"-13 x 1" Gr. 8 |
Contact |
| 61- |
|
BH-7792-58 |
1-0943 |
2 |
Sheave Spacer, 2" |
$75.46 |
| 62- |
|
BH-7794-73 |
2-0843 |
4 |
Spacer Bar |
Contact |
| 63- |
|
BH-7797-88 |
4-0187 |
1 |
Hydraulic Cylinder |
Contact |
| 64- |
|
|
6-1160 |
1 |
Locknut, 7/8"-14 UNF |
Contact |
| 65- |
|
BH-7800-55 |
6-0004 |
1 |
Wear Ring |
$29.57 |
| 66- |
|
BH-7794-21 |
2-0564 |
1 |
Piston |
Contact |
| 67- |
|
BH-7804-03 |
6-1305 |
1 |
O Ring |
Contact |
| 68- |
|
BH-7800-54 |
6-0003 |
1 |
Piston Seal |
$64.13 |
| 69- |
|
BH-7790-66 |
0-0169 |
1 |
Piston Seal Kit |
$112.33 |
| 70- |
|
BH-7794-22 |
2-0565 |
1 |
Piston Rod |
Contact |
| 71- |
|
|
6-0664 |
2 |
Hex Nut, 1"-14UNF-2A, Gr. 8 |
Contact |
| 72- |
|
BH-7794-20 |
2-0561 |
1 |
Cable Flange |
Contact |
| 73- |
|
BH-7801-96 |
6-0665 |
1 |
Clamp |
Contact |
| 74- |
|
|
6-0666 |
2 |
Hex Hd. Bolt, 3/8"-16 |
Contact |
| 75- |
|
BH-7801-92 |
6-0653 |
1 |
Rod Wiper |
Contact |
| 76- |
|
BH-7801-93 |
6-0654 |
1 |
Rod Seal |
Contact |
| 77- |
|
BH-7796-81 |
3-0348 |
1 |
Gland |
Contact |
| 78- |
|
BH-7801-94 |
6-0655 |
1 |
O Ring |
Contact |
| 79- |
|
BH-7790-67 |
0-0170 |
1 |
Gland Seal Kit |
$87.84 |
| 80- |
|
|
6-0730 |
4 |
Hex Hd. Bolt, 3/8"-16 x 2-3/4" |
Contact |
| 81- |
|
BH-7794-25 |
2-0575 |
4 |
Sheave Cover |
$37.57 |
| 82- |
|
|
6-1114 |
1 |
Serial Tag |
Contact |
| 83- |
|
|
6-0996 |
1 |
ALI/ETL Tag |
Contact |
| 84- |
|
|
6-0658 |
2 |
Wheeltronic Decal |
Contact |
| 85- |
|
BH-7805-97 |
6-0592 |
1 |
Caution Decal |
Contact |
| 86- |
|
|
6-0351 |
1 |
Safety Instructions Decal |
Contact |
| 87- |
|
BH-7805-96 |
6-0595 |
1 |
Warning Decal |
Contact |
| 88- |
|
|
6-0817 |
2 |
Quad Rack 10,000 Decal (Red) |
Contact |
| 89- |
|
|
6-1637 |
1 |
Attention Decal |
Contact |
