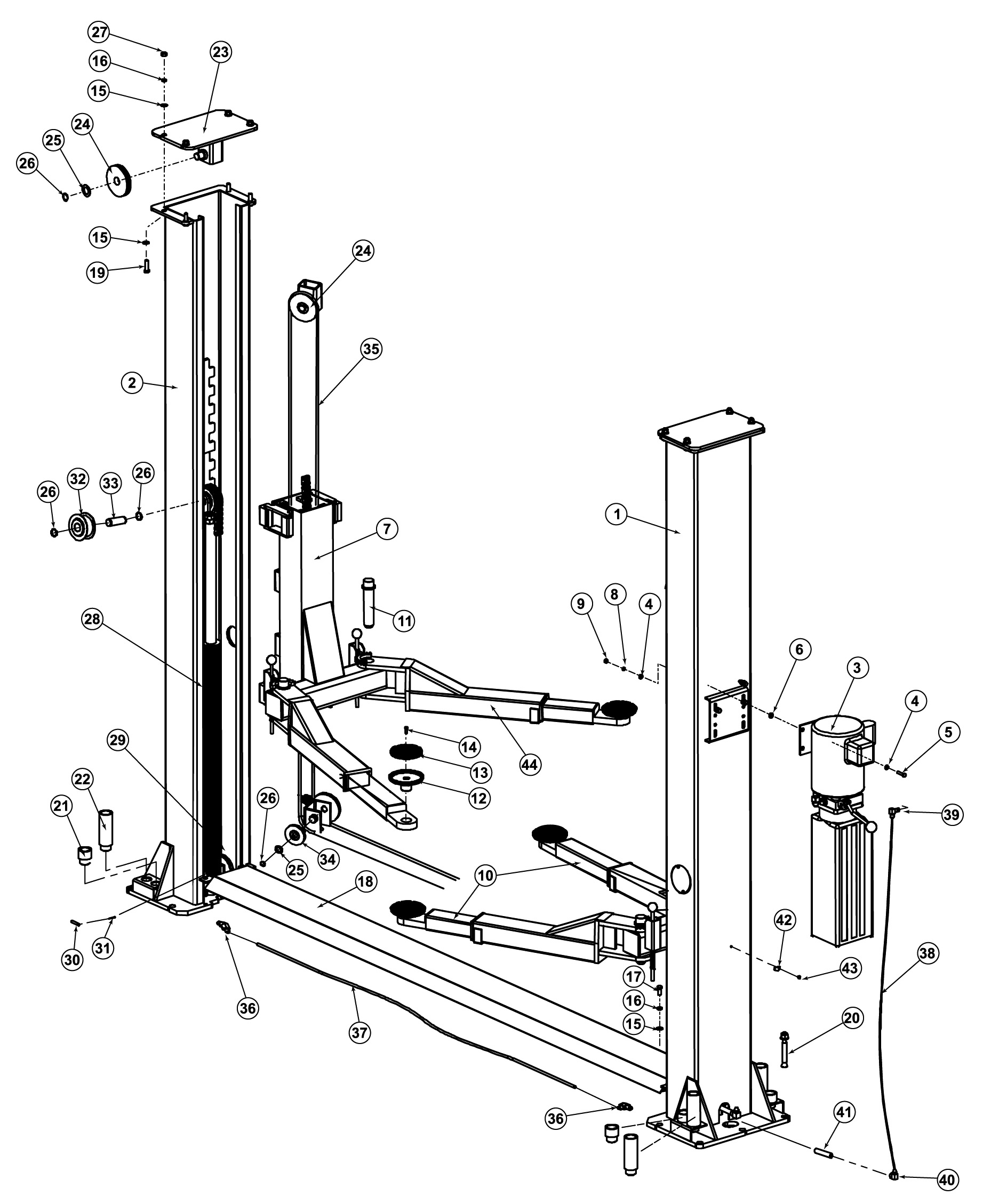

Direct Lift HR8000

Name: SVI International, LLC
Address: 155 Harvestore Drive, DeKalb, IL, 60115, US
Telephone: 800-321-8173

Direct Lift

Model:

Item	SVI Part #	OEM Ref #	QTY Per Equipment	Description	Price
1-	BH-7270-010	30400-1000	1	Column A, Master Side	Contact
2-	BH-7270-011	30400-1000A	1	Column B, Slave Side	Contact
3-		P3548	1	Power Unit	Contact
4-	BH-7248-1041	B41-8	10	Ø8 Flat Washer	Contact
5-	BH-7248-1042	B10-8x35	4	M8x35	Contact
6-	BH-7239-837	30400-1999	4	Washer	Contact
7-	BH-7270-001	30400-5000	2	Carriage	Contact
8-	BH-7248-1040	B40-8	4	Ø8 Lock Washer	Contact
9-	BH-7248-1039	B30-8	6	M8 Nut	Contact
10-	BH-7270-002	30400-8000-X	4	Inner Arm	Contact
11-	BH-7270-004	30400-5005	4	Arm Pin	$53.59
12-	BH-7270-005	30400-6005-2	4	Lifting Pad	$79.05
13-	BH-7270-006	PV-6003	4	Rubber Arm Pad	$13.06
13-	BH-7270-006-4	PV-6003x	1	Rubber Arm Pad (Set of 4)	$49.10
14-		B20-6x20	4	M6x20 Bolt	Contact
15-	BH-7248-1012	B41-12	12	Ø12 Flat Washer	Contact
16-	BH-7248-1013	B40-12	12	Ø12 Lock Washer	Contact
17-		B10-12x25	4	M12x25 HHCS	Contact
18-	BH-7270-009	30400-A-3000	1	Floor Plate	Contact
19-		B10-12x40	8	M12x40 Bolt	Contact
20-		B14-3/4x140	10	Anchor Bolt 3/4" x 5-1/2"	Contact
21-	BH-7270-007	30400-6014A	4	Adapter B	$89.32
22-	BH-7270-008	30400-6015A	4	Adapter A	Contact
23-	BH-7270-012	30400-A-2000	2	Top Plate	Contact
24-	BH-7270-013	52005	2	Cable Sheave 4.75"	$92.65
25-	BH-7248-1016	30400-1005C	6	Flat Washer	$28.38
26-	BH-7248-1015	B60-25	10	Ø25 Snap Ring	Contact
27-	BH-7248-1014	B30-12	8	M12 Nut	Contact
28-	BH-7270-014	YG01-9100G	2	Hydraulic Cylinder	$2,055.34
29-	BH-7033	BL644x121	2	Leaf Chain	$410.52
30-	BH-7270-016	30400-5023	4	Pin, Leaf Chain	Contact
31-	BH-7248-1019	B52-2x20	8	Ø2x20 Cotter Pin	Contact
32-	BH-7270-017	91773	2	Cable Sheave	Contact
33-	BH-7270-018	30400-9012-01	2	Cable Sheave Shaft	$41.80
34-	BH-7270-019	30400-1005B	4	4.75" Cable Sheave	Contact
35-	BH-7270-020	30400-9104L-2	2	Equalizer Cable	$140.26
36-	BH-7270-021	30400-9054(B)YZ	2	Fitting 45° Angle	Contact
37-	BH-7270-022	1WB-03	1	Hydraulic Hose	Contact
38-	BH-7270-023	1WG-01	1	Hydraulic Hose	Contact
39-	BH-7270-024	30400-9053YZ	1	90° Fitting	$77.02
40-	BH-7270-025	30400-9052YZ	1	Fitting, Hydraulic	Contact
41-	BH-7270-026	30400-9050YZG1	1	Fitting, Hydraulic	Contact
42-	BH-7270-027	30500-9056	6	Hydraulic Hose Clip	Contact
43-	BH-7248-1010	B23-6x8	5	M6x8 Screw	Contact
44-	BH-7270-003		4	Outer Arm	Contact

View More: Lift Repair Parts & Equipment

Related Breakdowns

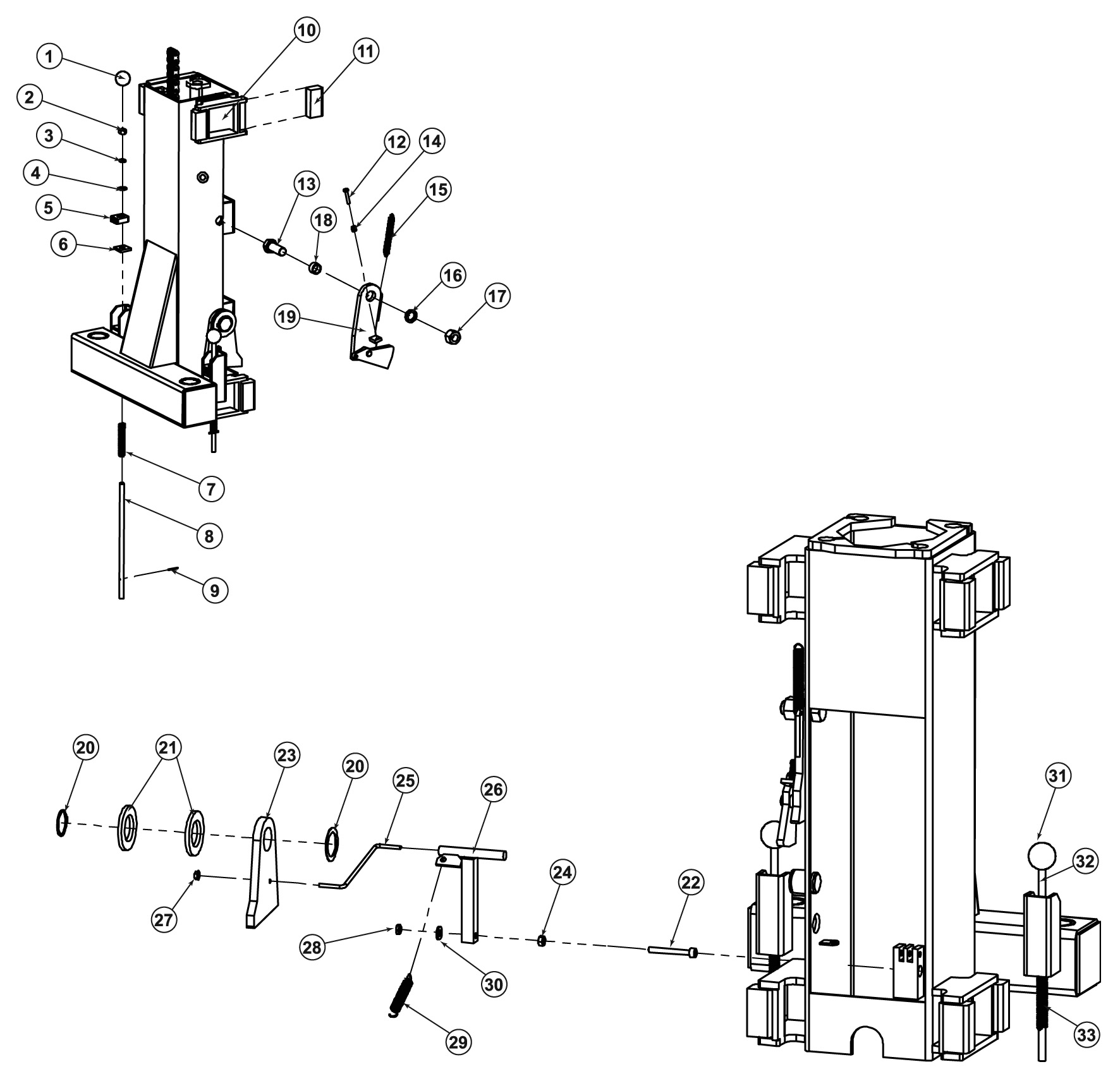

Direct Lift HR8000 Carriage Assembly
