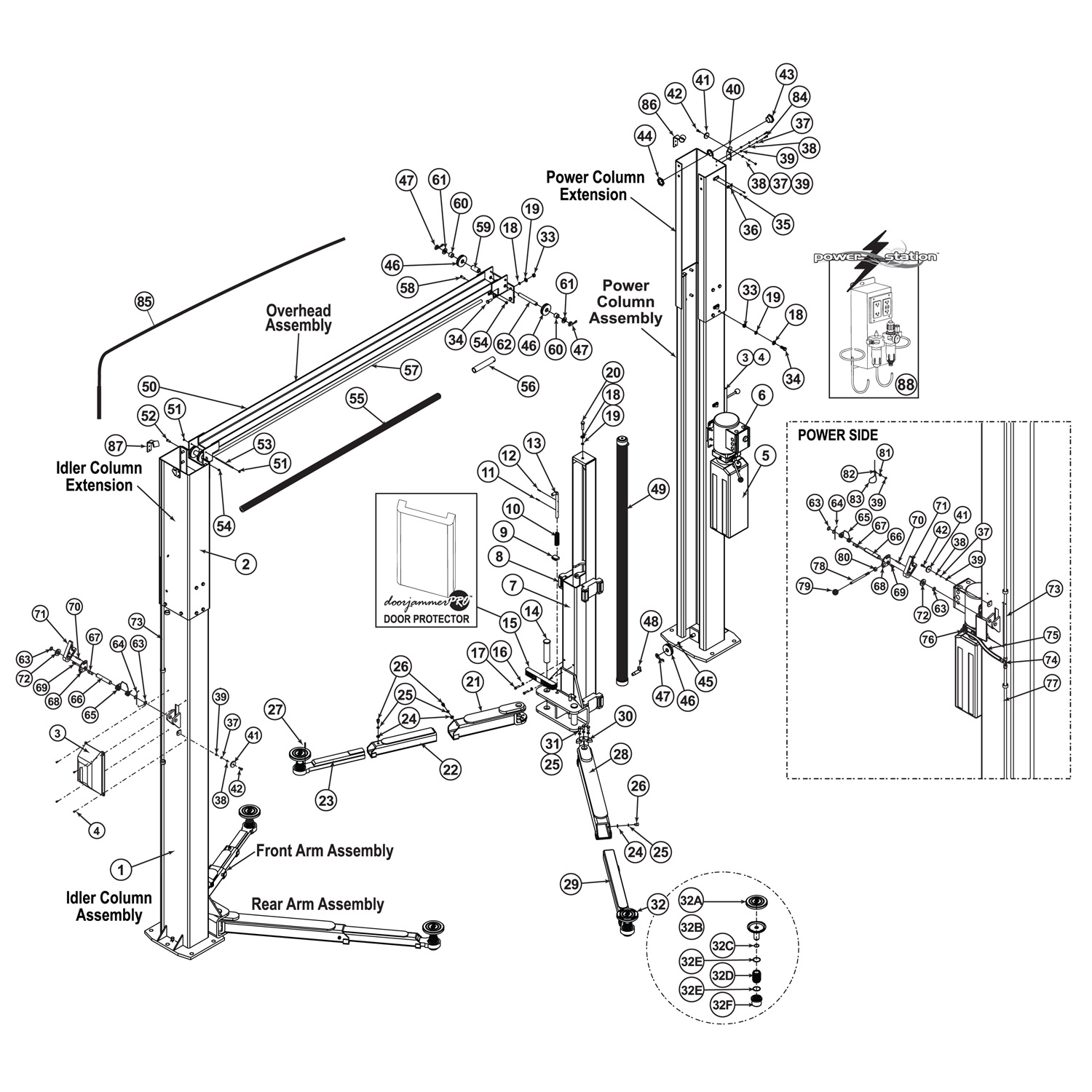

Challenger E10 Auto Lift Replacement Parts & Schematics

Challenger E10 Auto Lift Replacement Parts & Schematics

Challenger
Model:
E10
Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
1- BH-7234-463 JSJ5-02-01-00CH 1 Power Column Weld Contact
1- BH-7234-464 JSJ5-02-01-00fCH 1 Idler Column Weld Contact
2- BH-7234-465 JSJ5-02-02-00CH 1 Power Extension Weld Contact
2- BH-7234-466 JSJ5-02-02-00fCH 1 Idler Extension Weld Contact
3- BH-7234-31 X10-013 1 Power Lock Cover $20.82
3- BH-7234-32 X10-014 1 Idler Lock Cover $19.39
4- BH-7233-211 X10-065 8 Screw M5 x 10 $3.59
5- 31368-21 1 SVI Power unit, 2HP, 220V, 1ph. Pump Output: 2900PSI, with a 3.5 Gallon Reservoir Contact
6- X10-048 4 Nut M8 Contact
7- X10-085 2 Carriage Contact
8- BH-7234-51 X10-084 16 Slide Block $17.78
9- BH-7234-26 X10-083 4 Outer Gear $29.51
10- BH-7234-27 X10-082 4 Arm Restraint Spring $2.09
11- BH-7234-30 X10-081 4 Spring Pin 4 x 30 $3.62
12- BH-7234-29 X10-080 4 Spring Pin 4 x 24 Original price was: $0.96.Current price is: $0.52.
13- BH-7234-28 X10-079 4 Arm Restraint Pin $22.60
14- BH-7234-47 X10-076 4 Arm Pin $63.85
15- X10-086 2 Door Guard Contact
15- BH-7077-02-2 SVI Exclusive 1 SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) $546.90
15- BH-7077-02-1 2 SVI DoorJammer PRO™ Car Door Protector 24"Tall (individual) $273.13
15- BH-7077-02-2S SVI Exclusive 1 SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) $284.35
16- BH-7234-436 X10-087 4 Washer 8mm Original price was: $0.47.Current price is: $0.26.
17- BH-7234-437 X10-088 4 Bolt M8 x 30 $3.33
18- BH-7233-215 X10-038 28 Washer 12mm Contact
19- BH-7233-216 X10-039 28 Spring Washer 12mm Contact
20- BH-7234-441 X10-092 2 Bolt M12 x 45 Contact
21- BH-7234-440 JSJ5B-10-01-00 2 Front Female Arm Contact
22- BH-7234-445-F JSJ5B-10-02-00 2 Front Intermediate Arm $1,307.61
23- BH-7234-438 JSJ5B-10-03-00CH 2 Front Male Arm $564.58
24- BH-7234-447 X10-073 6 Washer 10mm Contact
25- X10-074 18 Spring Washer 10mm Contact
26- BH-7234-449 X10-075 6 Screw M10 Original price was: $0.81.Current price is: $0.44.
27- BH-7234-307 B2211 4 Roll Pin Ø6x30 Original price was: $1.75.Current price is: $0.95.
28- BH-7234-446 JSJ5B-09-01-00B 2 Rear Female Arm Contact
29- BH-7234-445-F JSJ5B-09-02-00CH 2 Rear Male Arm $1,307.61
30- BH-7234-25 X10-078 4 Inner Gear $12.20
31- BH-7233-212 X10-077 12 Screw M10 x 25 $3.53
32- BH-7232-98 B2250 4 Foot Pad Assembly $160.17
32- BH-7232-98GMT 1 Specialty Adapter Base and Pad (Set of 2) for 2019+ Chevy / GMC Trucks $574.47
32a- BH-7232-93 B2208 4 Rubber Pad Insert $13.42
32a- BH-7232-93F B2208-x 4 Rubber Pad Insert- Fabric Reinforced $18.59
32a- BH-7232-01U A1104-H 4 Snap-In Urethane Pad (for some models) $15.51
32a- BH-7232-01OHD-4 A1104-Hx 1 Rubber Pad Octagon Heavy Duty (Alt. to Urethane Snap In Pad) $61.16
32b- B2205 4 Foot Pad Weld Contact
32c- BH-7234-303 B17256 4 2 x 30 Retaining Ring Original price was: $0.44.Current price is: $0.24.
32d- BH-7234-304 B17254 4 Threaded Sleeve Contact
32e- 8 Round Wire Retaining Ring Contact
32f- BH-7234-443 B17276-1 4 Threaded Insert Contact
33- BH-7233-217 X10-040 28 Nut M12 Contact
34- BH-7234-467 X10-037 28 Bolt M12 x 30 Contact
35- BH-7234-453 X10-049 10 Bolt M5 x 8 Contact
36- BH-7234-57 X10-050 5 Plate-Shutoff Cord Clamp Contact
37- BH-7233-238 X10-033 8 Spring Washer 6mm Original price was: $0.28.Current price is: $0.15.
38- BH-7233-237 X10-032 8 Washer 6mm Original price was: $0.41.Current price is: $0.22.
39- BH-7233-239 X10-034 9 Nut M6 Original price was: $0.21.Current price is: $0.10.
40- BH-7234-16 X10-064L 1 LH Pulley Bracket $7.16
40- BH-7234-17 X10-064R 1 RH Pulley Bracket $9.49
41- BH-7234-24A X10-031 4 Pulley $3.55
42- BH-7234-24B X10-030 4 Pulley Axle $6.41
43- BH-7234-56 X10-052 2 Hose Guide Contact
44- X10-053 2 Hose Guide Nut Contact
45- BH-7234-423 X10-099 4 Washer 20mm Original price was: $0.93.Current price is: $0.50.
46- BH-7234-40 X10-057 6 Synch. Sheave $20.20
47- BH-7234-422 X10-054 6 Hair Pin Cotter $2.49
48- BH-7234-234 X10-046 2 Long Elbow $24.02
49- BH-7234-231 JSJ5-07-00CHA 2 Cylinder Must replace in pairs $958.61
50- JSJ5-03-01-00Q 1 Overhead Weld Contact
51- BH-7234-428 B31061 4 M6 Lock Nut Contact
52- BH-7234-451 X10-063 1 Bolt M8 Contact
53- BH-7234-429 JSJ5-03-07CH 2 Cable Trapping Rod $2.36
54- BH-7234-433 X10-096 2 Lock Nut M10 Contact
55- BH-7234-229 X10-061 1 Shutoff Bar Cushion $8.58
56- BH-7229-37 36027 1 Limit Switch $138.99
57- BH-7234-228 JSJ5-03-02CH 1 Shutoff Bar $72.02
58- BH-7234-452 X10-060 2 Bolt M8 x 25 Contact
59- BH-7234-43 X10-059 2 Middle Spacer Sleeve $3.82
60- BH-7234-42 X10-056 4 Spacer Sleeve $4.07
61- BH-7233-218 X10-055 4 Washer $3.33
62- BH-7234-41 X10-058 2 Axle $17.44
63- BH-7234-462 X10-020 4 C Ring 20 Original price was: $0.93.Current price is: $0.50.
64- BH-7234-36 X10-022 2 Lock Release Spring 1 coil $2.70
65- BH-7234-37 X10-023 2 Lock Release Spring 2 coil $5.24
66- BH-7234-38 X10-024 2 Lock Release Shaft $2.51
67- BH-7234-39 X10-021 2 Lock Release Wire Pin $5.54
68- BH-7234-18 X10-025 2 Lock Release Cam $3.82
69- BH-7234-459 X10-026 2 Bolt M6 Original price was: $0.47.Current price is: $0.26.
70- X10-027 2 Spring Pin 6x 35 Contact
71- BH-7234-35 X10-028 2 Lock Pawl $22.20
72- BH-7234-458 X10-029 2 Washer Original price was: $0.47.Current price is: $0.26.
73- BH-7234-54 X10-041 1 Idler Column Hose $150.99
74- X10-042 1 Union Tee Contact
75- BH-7233-84 JSJ5-17CH 1 Power Unit Hose $26.45
76- BH-7234-469 X10-044 1 O-Ring Elbow $21.20
77- BH-7234-236 JSJ4-16 1 Power Column Hose $48.77
78- BH-7234-34 X10-018 1 Lock Release Stud $5.25
79- BH-7234-33 X10-017 1 Lock Release Knob $5.25
80- BH-7234-461 X10-019 1 Nut M10 $6.94
81- X10-036 1 Sleeve Contact
82- BH-7233-240 X10-035 1 Bolt (Cable Clamp) $4.03
83- BH-7234-24 JSJ5-06CH 1 Lock Release Cable $22.14
84- BH-7234-455 X10-051 4 Bolt M6 x 20 Contact
85- BH-7234-412 JSJ5-04-00CH 2 Equalizer Cable 389" $113.28
85- BH-7234-412F JSJ5-04-00CH 2 Equalizer Cable 391" $113.28
85- BH-7234-412H JSJ5-04-00CHH 2 Equalizer Cable 437-1/2" $121.31
88- BH-7070-K SVI Exclusive 1 Power Station (for 2-Post Lift) $474.85
