Challenger CL10 Lift Parts Breakdown & Replacement List

Challenger CL10 Lift Parts Breakdown & Replacement List

Challenger
Model:
CL10

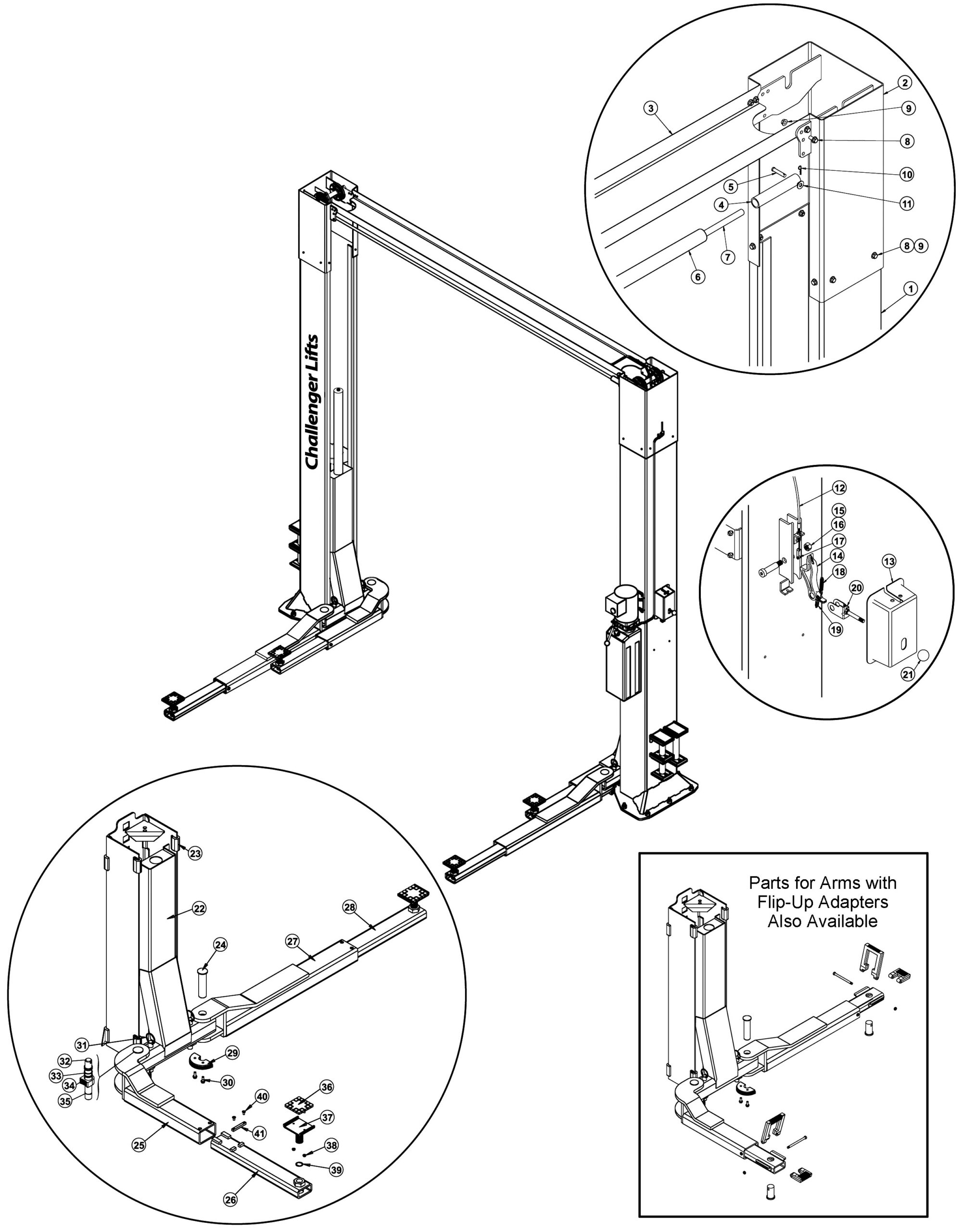

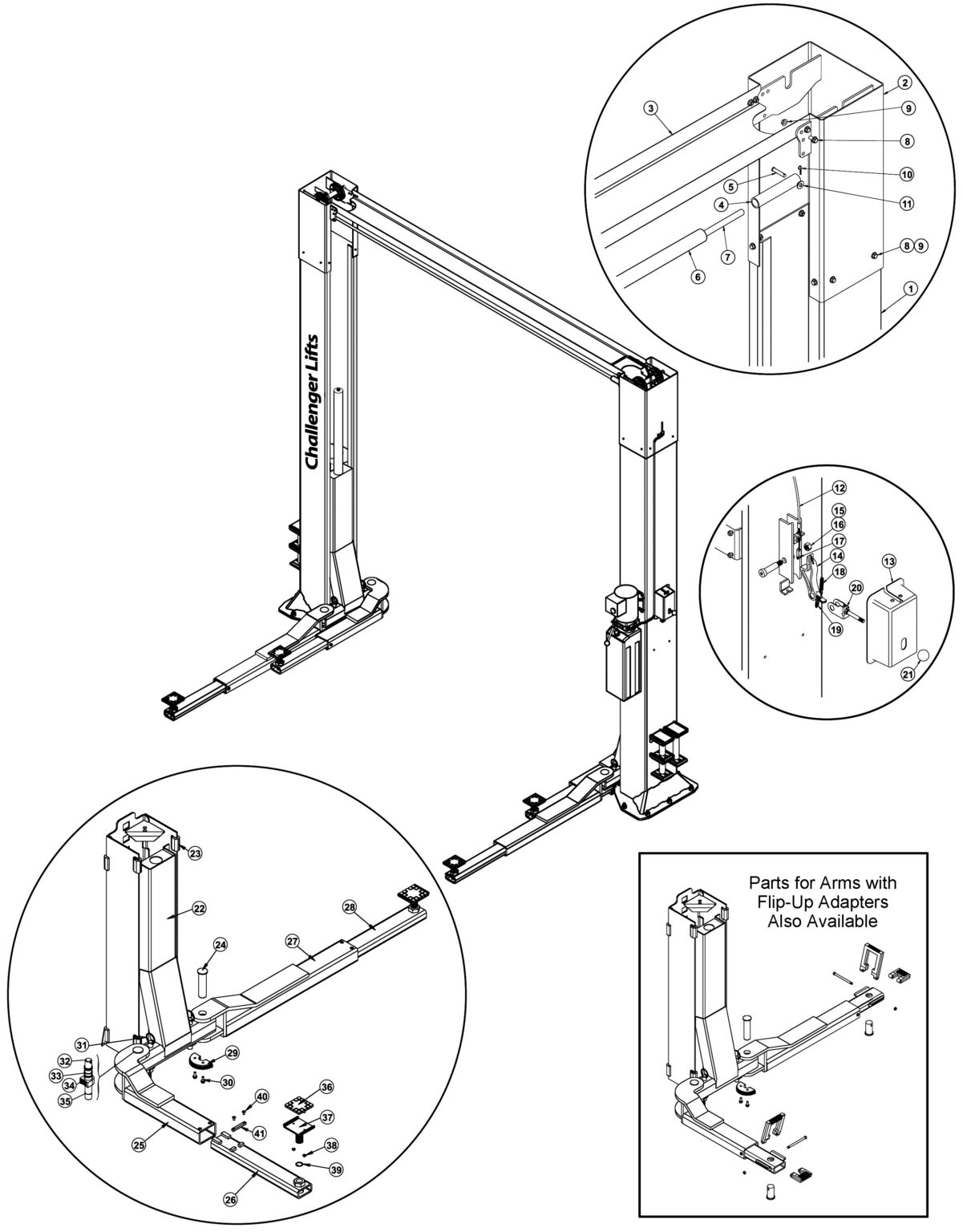

Overall Breakdown

Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
--- BH-7232-60 A2090 2 Rear Arm Assy. (Items: 27, 28, 40, 41) $7,454.45
--- BH-7232-57 A2085-P 1 Front Arm Assembly (Power) (Items: 25, 26, 40, 41) Contact
--- BH-7232-56 A2085-I 1 Front Arm Assembly (Idler) (Items: 25, 26, 40, 41) $2,564.95
--- BH-7232-17HDA-P SVI Exclusive 4 Screw Adapter Base and Pad $91.38
--- BH-7232-19E A1077 4 Arm Res. Shaft Assy. - One Arm (Items: 31-35) $37.44
--- BH-7232-19KIT 4 Arm Restraint KIT - One Arm (Includes BH-7232-19A, BH-7232-19E, and hardware) $154.37
--- BH-7231-95 1 Height Extension Hanger Bracket (1) - Holds 2 $30.52
--- BH-7231-95K 1 Height Extension Hanger Bracket (2) - Holds 4 $65.73
1- A2010-P 1 Power Column Weld Contact
1- A2010-I 1 Idler Column Weld Contact
2- A2055-0 2 Column Extension Weld - CL10 Contact
2- A2055-2 2 Column Extension Weld - CL10-2 Contact
2- A2055-3 2 Column Extension Weld - CL10-3 Contact
3- A2060 1 Overhead Channel Contact
4- BH-7232-37 A1064 2 3/8 Dia x 1-7/8 Lg. Clevis Pin (Shutoff Bar) $3.09
5- BH-7229-37 36027 1 Overhead Limit Switch $138.99
6- BH-7225-68 31129 1 Pad $3.48
7- 36074 1 Shutoff Bar Contact
8- A1153 24 3/8-16NC Hex Flg. Hd. C.S. x 3/4" Lg. Contact
9- A1154 24 3/8-16NC Hex Flg. Nut Contact
10- 40124 2 Hairpin Cotter Pin Contact
11- 31036 7 3/8" Flat Washer Contact
12- BH-7232-68 A2135-0 1 Lock Release Cable Assembly - CL10 $93.90
12- BH-7232-69 A2135-2 1 Lock Release Cable Assembly - CL10-2 $79.28
12- BH-7232-66 A2135-3 1 Lock Release Cable Assembly - CL10-3 $79.28
13- BH-7232-44 A1133 2 Lock Cover $29.41
14- BH-7232-45 A1140 2 Lock Pawl $43.19
15- 30020 2 Lock Pin (5/8 x 1-1/2" Lg. Shoulder Bolt) Contact
16- 37013 2 Lock Pin Retainer (1/2-13NC Hex Lock Nut) Contact
17- BH-7229-57 37119 1 Clevis Pin Kit $33.45
18- BH-7232-50 A1131 2 Lock Spring (3/8" O.D.) $1.98
19- BH-7232-49 A1132 1 Cable Spring (1/2" O.D.) - Idler Side Only $2.92
20- BH-7232-46 A1141 1 Lock Release Clevis Assembly - Power Side Only $78.37
21- BH-7503-45 36096 1 Ball Handle - Power Side Only $16.88
22- A2025 2 Carriage Weld (Line) Contact
22- B2026 2 Carriage Weld (Hose) Contact
23- BH-7225-23 31023 16 Slide Block $25.97
24- BH-7232-12 A1078 4 Arm Pin Weld $38.44
25- BH-7235-549 B2086-P 1 Front Female Arm Weld (Power) $1,999.08
25- B2086-I 1 Front Female Arm Weld (Idler) Contact
26- BH-7232-15B B1094-F 2 Male Arm Weld (Front) $318.57
27- B2091 2 Rear Female Arm Weld Contact
28- B1094-R10 2 Male Arm Weld (Rear) Contact
29- BH-7232-19A A1070 4 Inner Gear $69.90
30- BH-7234-314 B1068 8 Arm Restraint Gear Hex Bolt $1.94
31- BH-7508-20 A1075 4 Pull Ring $8.82
32- BH-7232-19B A1073 4 Shaft $15.42
33- BH-7229-60 31109 4 Compression Spring (Restraint Shaft) Original price was: $1.66.Current price is: $0.90.
34- BH-7232-19 A1072 4 Outer Gear $21.25
35- 36014 4 1" Ext. Retaining Ring Contact
36- BH-7232-01 B1104 4 Foot Pad Rubber Insert (Square) $8.88
36- BH-7232-01-4 A11052 1 Rubber Pad (Set of 4) $33.74
36- BH-7232-01U A1104H 4 Urethane Snap-In Pad $15.51
36- BH-7232-01OHD A1104-Hx 4 Rubber Pad Octagon Heavy Duty $16.50
36- BH-7232-01OHD-4 A1104-Hx 1 Rubber Pad Octagon Heavy Duty KIT of 4 $61.16
36- BH-7232-93 4 Rubber Pad Insert (Round) $13.42
37- BH-7232-17HDA B1101 4 Screw Adapter Weld *Also sold with pad as an assembly BH-7232-17HDA-P $83.93
37a- BH-7232-17HDA-P A1100 / B1100 4 Screw Adapter Assembly $91.38
38- BH-7234-428 B31061 8 M6 Keps Nut Contact
39- 39111 4 Foot Pad Retainer Ring Contact
40- BH-7232-97 B1081 8 M8x1.25x16 Flat Socket Head Screw Original price was: $1.61.Current price is: $0.86.
41- BH-7232-96 B1082 4 Arm Stop $16.42
42- BH-7070-K SVI Exclusive 1 Power Station (for 2-Post Lift) $474.85
View More: Lift Repair Parts & Equipment

Related Breakdowns

related breakdown

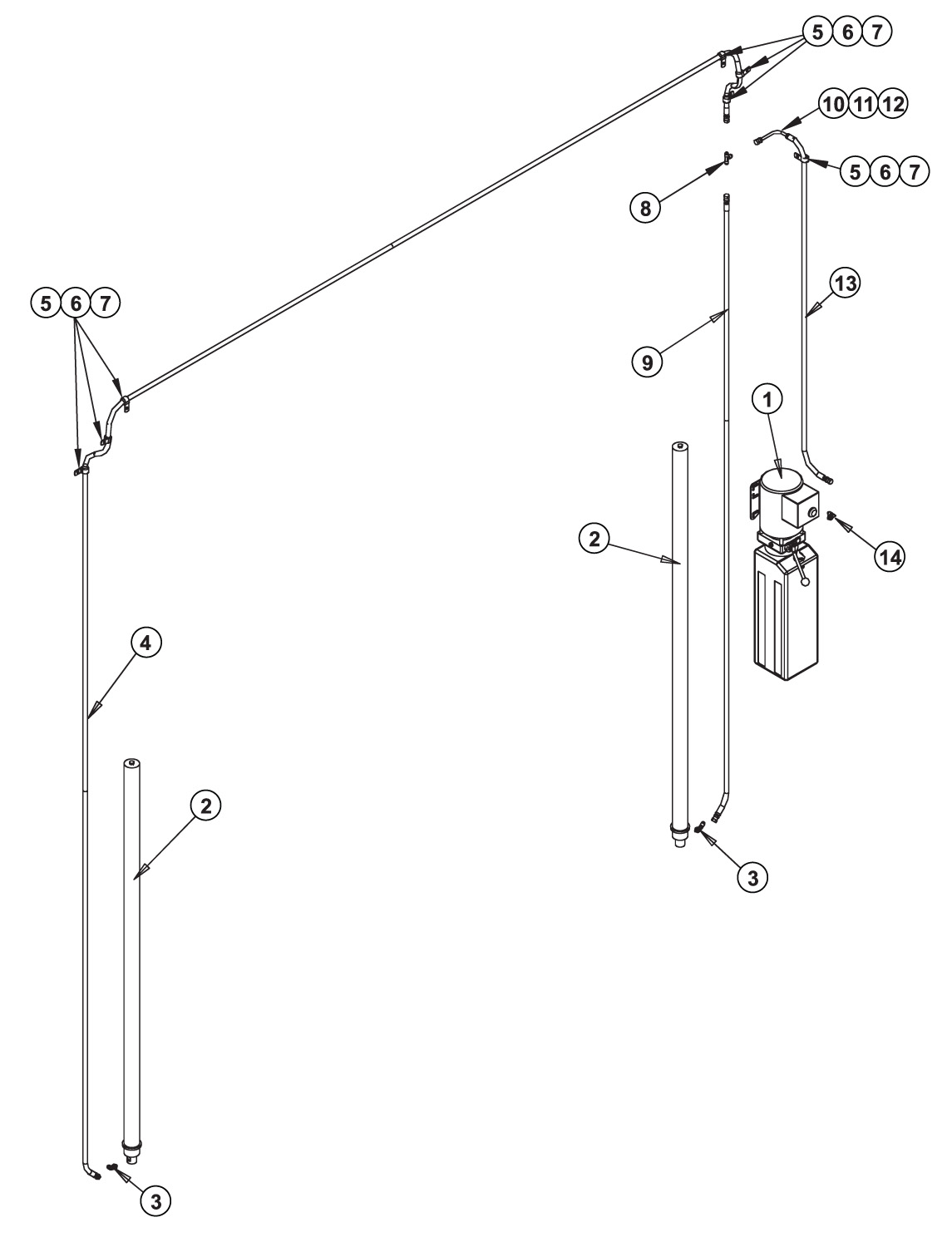

Challenger CL10 Hydraulics
related breakdown

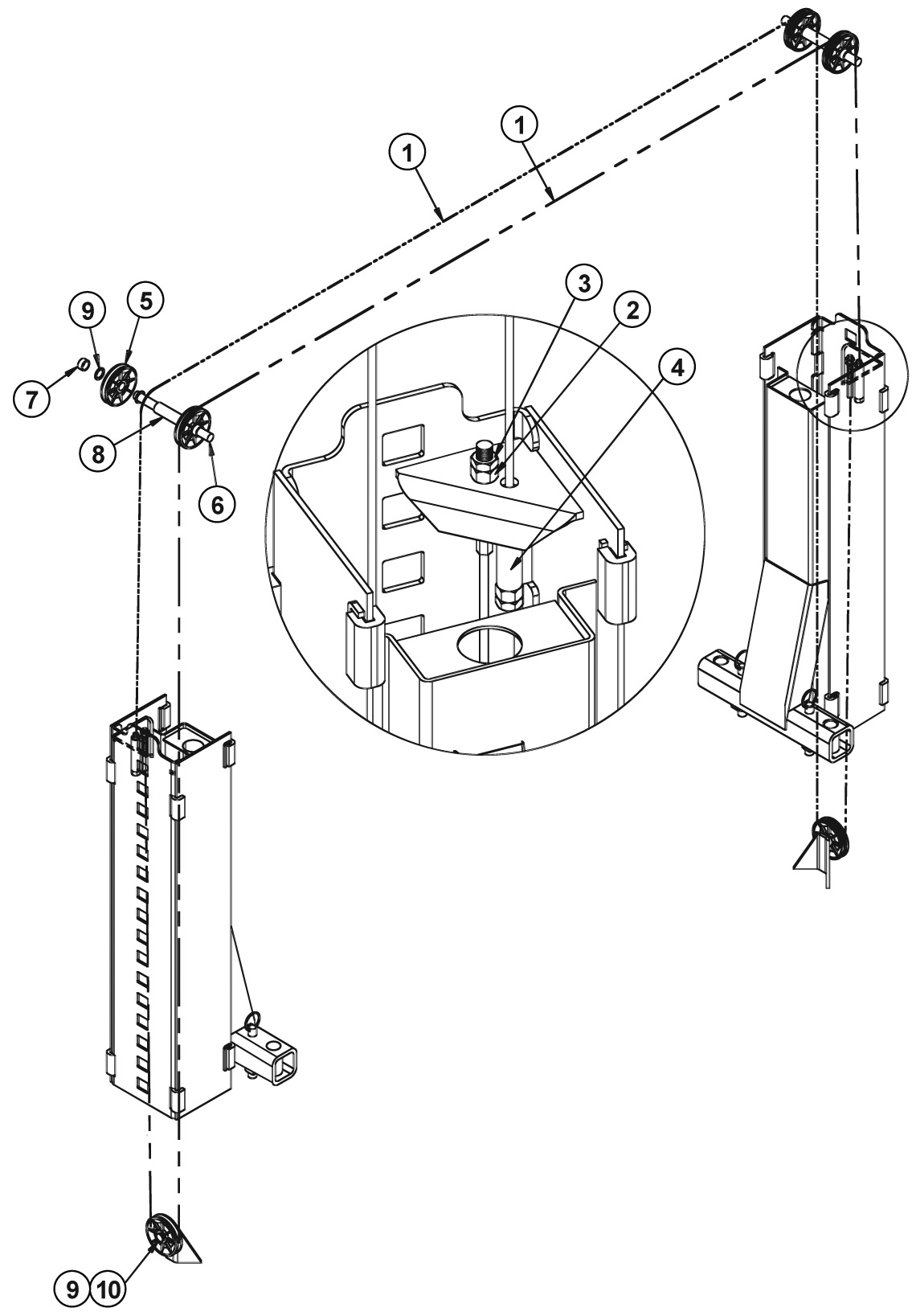

Challenger CL10 Synchronizer
