Bishamon NA-7

Bishamon NA-7

Bishamon
Model:
NA-7

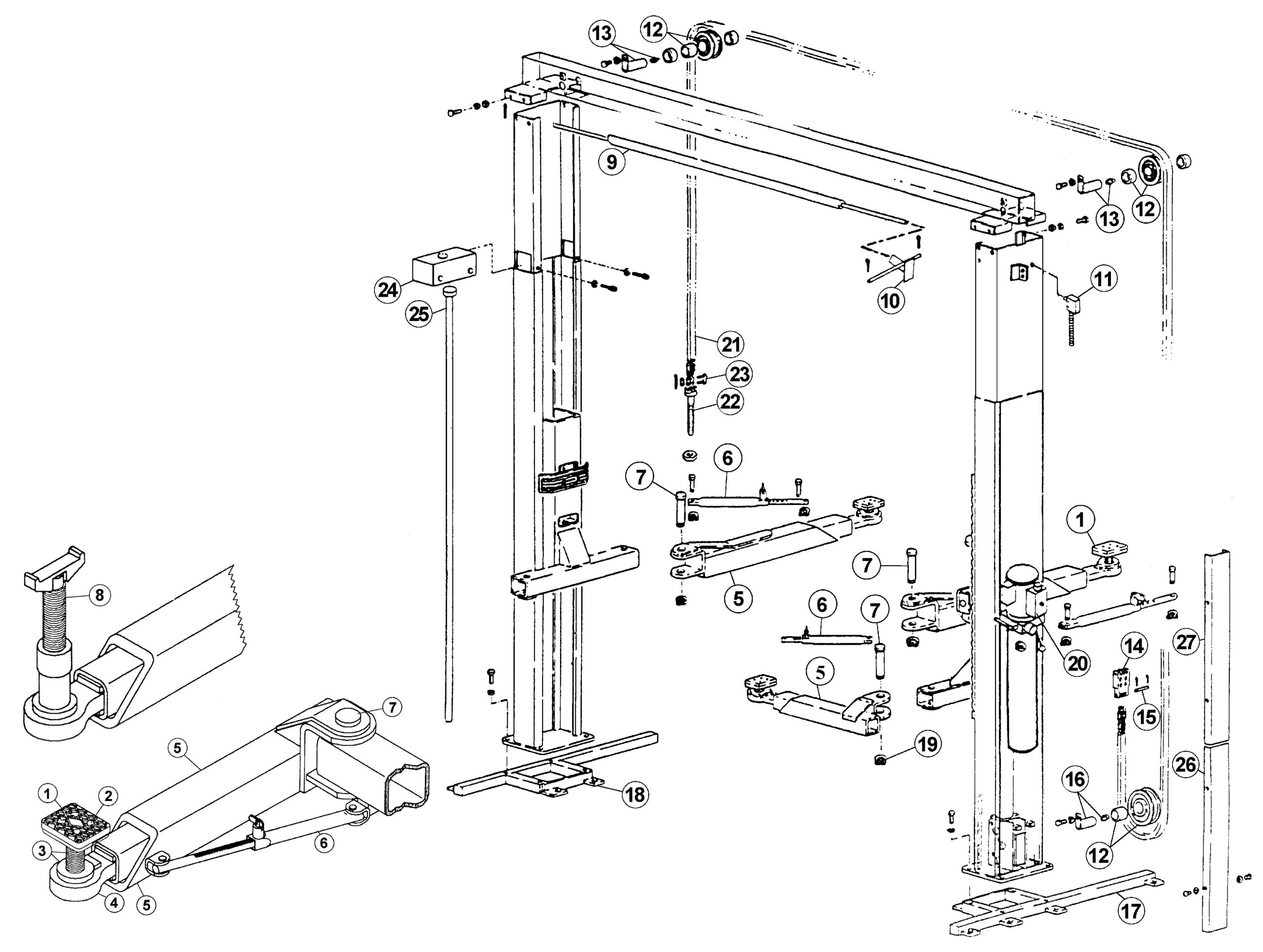

Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
1- BH-7205 SP710002 1 Rubber Arm Pad $14.70
2- XFS04 1 Round Head Screw Contact
3- BH-7205-02 LAE00000 1 Adj. Support w/Nut (SVI Version) $449.42
4- BH-7205-05 1 Short Slide Arm (GPO-55) Contact
4- BH-7205-06 SP732000 1 Short Slide Arm (GPO-7, SPO7) Contact
4- BH-7205-07 1 Long Slide Arm (GPO-55) Contact
4- BH-7205-08 SP712000 1 Long Slide Arm (GPO-7, SPO7) Contact
5- BH-7205-11 1 Short Arm R (GPO-55) Contact
5- BH-7205-11A SP731000 1 Short Lift Arm (Right) Contact
5- BH-7205-09 1 Short Arm L (GPO-55) Contact
5- BH-7205-09A SP7410000 1 Short Lift Arm (Left) Contact
5- 1 Long Arm R (GPO-55) Contact
5- SP711000 1 Long Lift Arm (Right) Contact
5- BH-7205-10 1 Long Arm L (GPO-55) Contact
5- BH-7205-10A SP721000 1 Long Lift Arm (Left) 12-5/8" Contact
6- BH-7200-10A 1 Arm Restraint Assembly $281.35
6- BH-7202-30 SP750000 1 Arm Restraint Assy. "B" 10-5/8" $361.35
7- BH-7201-12 SP713000 1 Lift Arm Pin $294.55
8- BH-7201-81 TA-7 1 Truck Height Adapter $419.12
9- BH-7201-93 SA620000 1 Limit Switch w/Cover for Standard "B" Models Contact
9- BH-7202-18 1 Wire for Japan Models Contact
10- BH-7202-21 SA610000 1 Upper Limit Stop Contact
11- BH-7202-22 SA630000 1 Limit Switch Assembly Contact
12- BH-7201-09 ASO1 1 Chain Wheel C Assembly $710.56
13- BH-7201-87 ASO2 1 Chain Wheel Shaft Assembly $202.28
14- BH-7201-02 SP600002 1 Carriage Chain Plate Contact
15- BH-7201-03 51311100 1 Chain Fitting Pin $66.81
16- BH-7201-10 SP810000 1 Sub Chain Wheel Assembly Contact
17- SA720000 1 Left Side Base Contact
18- SA710000 1 Right Side Base Contact
19- XFR08 1 Retaining Ring 1-9/16" Contact
20- BH-7006-01 XE001 1 Single Phase Power Unit Contact
21- BH-7030 XC003 1 3/4 Pitch Leaf Chain 6x6 - 10' * Check to verify type of chain before ordering $468.98
22- BH-7202-25 SP800004 1 Chain Adjuster $437.27
23- BH-7030-01 80839455 1 Connecting Link $7.25
24- SA200001 1 Safety Bar Holder Contact
25- BH-7201-92 SA220000 1 Safety Bar $479.78
26- SA100005 1 Chain Case Contact
27- SL100003 1 Chain Case - Short Contact
