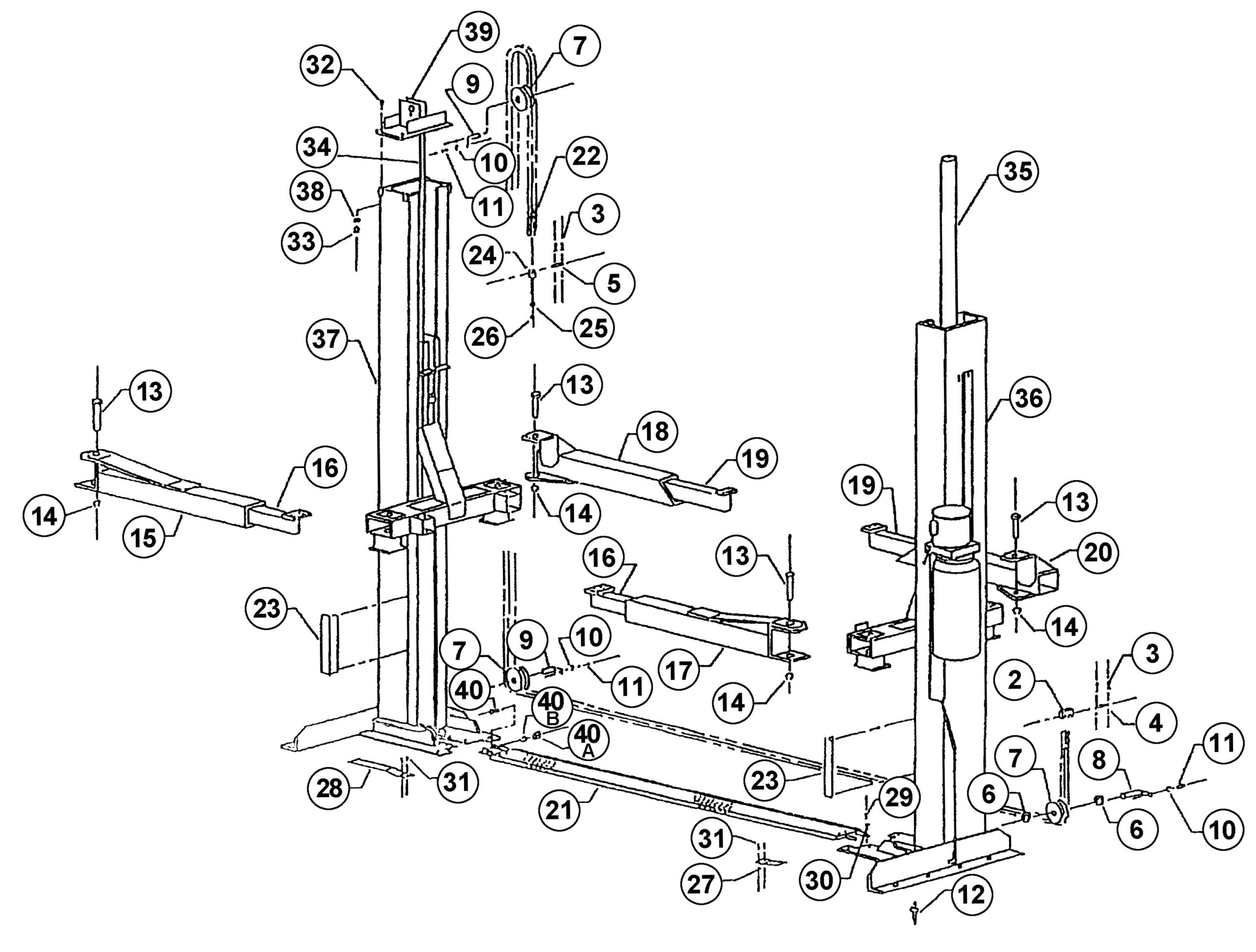

Benwil BW-7

Name: SVI International, LLC
Address: 155 Harvestore Drive, DeKalb, IL, 60115, US
Telephone: 800-321-8173

Benwil

Model:

Item	SVI Part #	OEM Ref #	QTY Per Equipment	Description	Price
2-		300344	1	Anchor-Chain	Contact
3-			4	1/8" x 7/8" Cotter Pin	Contact
4-	BH-7210-52	300346	1	Pin, Chain Anchor	Contact
5-	BH-7209-65	300125	1	Clevis Pin	$94.13
6-	BH-7208-31	300333	2	Spacer-Sheave	$48.59
7-	BH-7208-19	300068	3	Sheave	$200.42
8-	BH-7208-29	300393	1	Shaft Assembly - Drive Side	$148.79
9-	BH-7208-30	300392	2	Shaft Assembly - Driven Side	$148.79
10-			3	1/4" Split Lock Washer	Contact
11-			3	1/4"-20 x 3/8" Hex Bolt	Contact
12-		500388	12	Anchor Bolt Assembly	Contact
13-	BH-7211-01	300238	4	Pin-Arm Front & Rear	$121.46
14-		300218-4	4	Snap Ring	Contact
15-	BH-7211-06	300200-1	1	Arm Weld-Rear LH	Contact
16-	BH-7211-07	300201-1	2	Arm Weld Ext. Rear	Contact
17-	BH-7211-08	300200-2	1	Arm Weld-Rear RH	Contact
18-	BH-7211-03	300321-1	1	Arm Weld-Asym. Front LH	Contact
19-	BH-7211-04	300235-1	2	Arm Weld Asym. Front	Contact
20-	BH-7211-05	300231-2	1	Arm Weld-Asym. Front RH	Contact
21-		300249-1	1	Floor Plate	Contact
22-		300158-3	1	Leaf Chain-421 Links	Contact
23-		300568	2	Bumper Door	Contact
24-	BH-7205-40	300124-2	1	Clevis-Chain	$202.57
25-			1	9/16"-18 Hex Nut	Contact
26-			1	9/16"-18 Hex Jam Nut	Contact
27-		300408	1	Chain Cover-Drive Side	Contact
28-	BH-7207-61	300409	1	Chain Cover-Driven Side	Contact
29-			8	3/8"-16 x 3/4" Hex Bolt	Contact
30-			12	3/8" Split Lock Washer	Contact
31-			4	10-32 x 1/2 Phil. Hd. Slf. Thred. Screw	Contact
32-			8	1/2"-13 x 2-1/2" Hex Bolt	Contact
33-			4	1/2"-13 Hex Nut	Contact
34-	BH-7202-95	300300	1	Rod Assy. - Restraint	$598.21
35-	BH-7202-89	300275	1	Hydraulic Cylinder (see for BW7L/7WL)	Contact
35-			1	Hydraulic Cylinder for BW7L/7WL	Contact
36-		300294	1	Column-Drive Side	Contact
37-		300268	1	Column-Driven Side	Contact
38-			4	1/2" Split Lock Washer	Contact
39-		300295	1	Upper Sheave Brkt. Assy.	Contact
40-			4	3/8"-16 x 1" Hex Head Bolt	Contact
40a-			4	3/8"-16 Hex Head Nut	Contact
40b-			4	3/8" Spring Lock Washer	Contact
