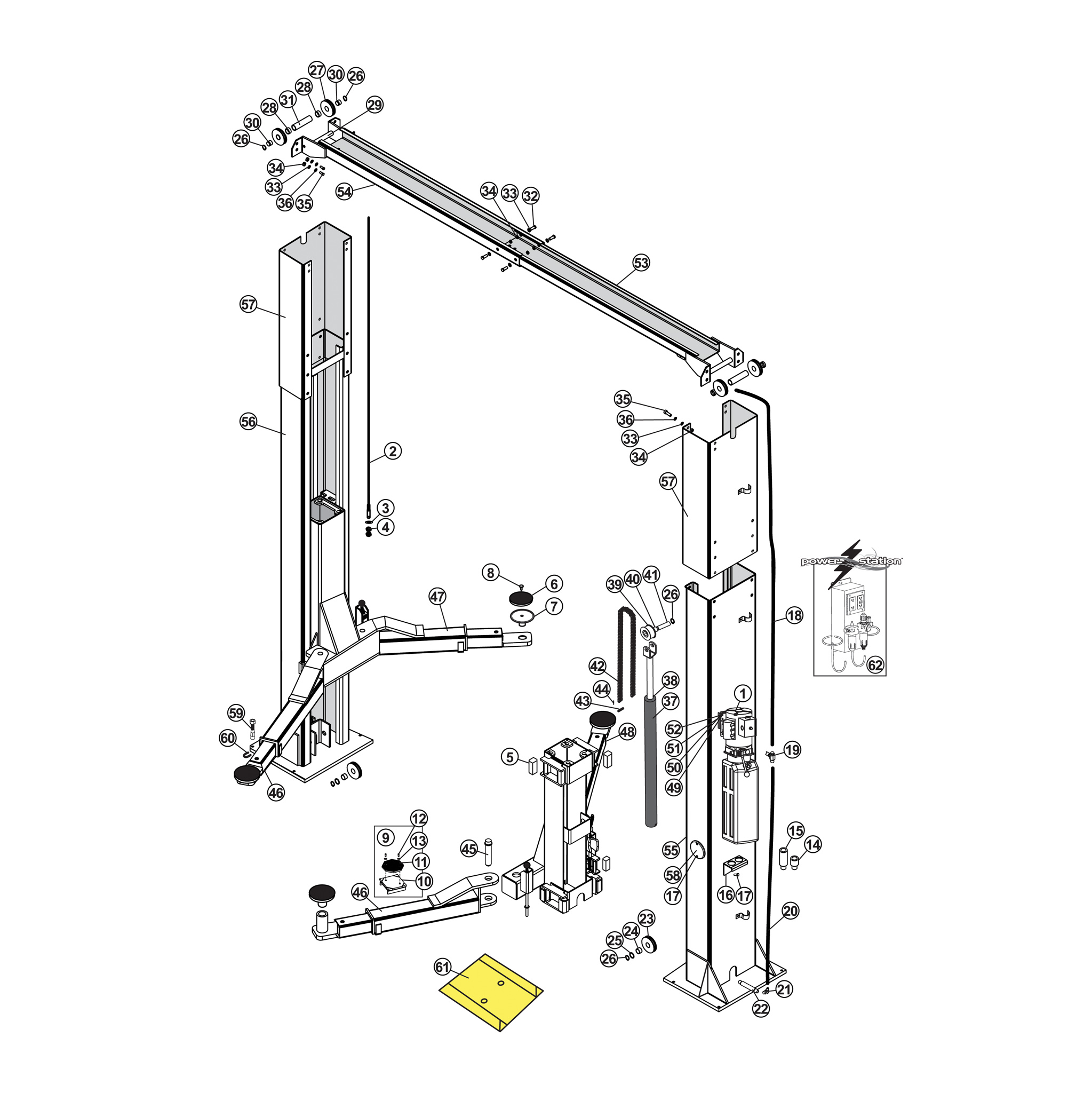

Atlas 9KOH Lift Replacement Parts & Schematics

Atlas 9KOH Lift Replacement Parts & Schematics

Atlas
Model:
9KOH
Item ADD QTY. SVI Part # OEM Ref # QTY Per Equipment Description Price
1- QL4L-000-21 1 Hydraulic Power Unit Contact
2- BH-7166-803 QL4L-600-00 2 Equalizer Cable $167.30
3- BH-7168-0057 GB97.1-85 1 Flat Washer 20 Contact
4- BH-7168-0047 GB6170-86 8 Hex Nut M20 Contact
5- BH-7168-0006 QL40-500-01 16 Slider Block $24.20
6- BH-7588-465 QL40-000-03 4 Rubber Arm Pad (1) $15.30
7- BH-7166-246 QL40-000-02 4 Lift Pad Adapter Base $130.31
8- BH-7168-0048 GB70-85 4 Hex Socket Head Capscrew M6X20 $3.43
9- QL4L-X20-00 2 Lift Arm Adapter and Pad Contact
9a- BH-7090-94 1 Outer Arm Adapter with Rectangle Pad (Confirm Dimensions before ordering) Confirm dimensions before ordering $92.82
10- QL4L-X21-00 2 Lift Arm Adapter Base Contact
11- QL4L-X20-01 2 Lift Arm Adapter Pad Confirm dimensions before ordering Contact
12- BH-7168-0064 GB819-85 4 Machine Screw M6x212 Contact
13- BH-7168-0058 GB97.1-85 4 Flat Washer 6 Contact
14- BH-7168-0004 QL40-000-04 4 Nesting Height Extension - Short $35.14
15- BH-7168-0005 QL40-000-05 4 Nesting Height Extension - Tall $64.65
16- BH-7168-0069 QL4L-000-18 2 Hangar Bracket / Rack for Extensions Contact
17- BH-7168-0050 GB818-85 20 Pan Head Screw M6X8 Contact
18- BH-7168-0076 QL4W-000-02 1 Hydraulic Hose (Joint to P/U) $216.39
19- QL4W-000-01 1 Tee Connector Contact
20- BH-7168-0027 QL40-000-08 1 Hydraulic Hose (Cyl to PU) 62-1/4" $49.10
21- BH-7168-0022 QL40-000-09 2 Elbow Fitting Contact
22- BH-7168-0066 QL40-000-B10 2 Connector Contact
23- BH-7166-804 QL40-200-03 2 Cable Sheave / Pulley (Lower) $44.21
24- BH-7168-0007 QL40-200-05 2 Bushing for Thin Cable Sheave $10.90
25- BH-7168-0002 QL40-200-04 2 Washer for Cable Sheave $6.43
26- GB894.1-86 10 Retaining Ring D25 Contact
27- BH-7166-807 QL4L-400-02 4 4" Cable Sheave / Pulley (Upper) - Thick $152.84
28- BH-7168-0001 QL40-700-02 4 Bushing for Thick Cable Sheave Contact
29- BH-7166-806 QL4L-400-01 2 Pulley Shaft $53.50
30- BH-7168-0072 QL4L-400-04 4 Short Spacer Contact
31- BH-7168-0071 QL4L-400-03 2 Long Bushing Contact
32- BH-7168-0061 GB5782-86 5 Hex Bolt M12X25 Contact
33- BH-7168-0056 GB97.1-85 34 Flat Washer 12 Contact
34- BH-7168-0046 GB6170-86 29 Hex Nut M12 Contact
35- BH-7168-0060 GB5782-86 24 Hex Bolt M12X40 Contact
36- BH-7168-0053 GB93-87 24 Lock Washer 12 Contact
37- BH-7168-0085 QL40-100-00 2 Hydraulic Cylinder $1,010.12
38- BH-7168-0086 QL40-100-00x 1 Seal Kit for Hydraulic Cylinder $86.10
39- BH-7168-0035X QL40-100-02 2 Chain Roller (Must replace in pairs) $110.47
40- BH-7168-0036 QL40-100-04 2 Bearing Hub $28.41
41- BH-7168-0034 QL40-100-03 2 Rolled Axle $39.16
42- BH-7168-0033 QL40-200-02 2 Leaf Chain—See SVI Chain Book Contact
43- BH-7168-0028 QL40-000-12 4 Chain Pin $10.29
44- GB91-86 8 Split Pin 2X20 Contact
45- BH-7168-0008 QL40-800-00 4 Arm Pin $42.44
46- BH-7168-0082 QL4W-400-00 2 Straight Arm Contact
47- BH-7168-0083 QL4W-500-L0 1 Left Bend Arm Contact
48- BH-7168-0084 QL4W-500-R0 1 Right Bend Arm Contact
49- BH-7168-0044 GB5782-86 4 Hex Bolt M8X25 Contact
50- BH-7168-0059 GB97.1-85 8 Flat Washer 8 Contact
51- BH-7168-0054 GB93-87 4 Lock Washer 8 Contact
52- BH-7168-0062 GB6170-86 4 Hex Nut M8 Contact
53- BH-7168-0074 QL4L-4R0-00 1 Overhead Beam - Right Contact
54- BH-7168-0073 QL4L-4L0-00 1 Overhead Beam - Left Contact
55- BH-7168-0080 QL4W-2R1-00 1 Column - Right Contact
56- BH-7168-0079 QL4W-2L1-00 1 Column - Left Contact
57- BH-7168-0078 QL4W-100-00 2 Column Extension Contact
58- BH-7168-0024 QL40-200-01 2 Window Panel Contact
59- BH-7075-03-20 QL4W-000-03 10 Wedge Anchor Bolt $110.65
60- BH-7512-92 1 Shim Assortment 150 Pieces; 3 Sizes $81.33
61- 1 Wheel Spotter Dish Kit - Single Position - with Anchors Contact
62- BH-7070-K SVI Exclusive 1 Power Station (for 2-Post Lift) $474.85
