| 1- |
|
|
209002 |
1 |
Hydraulic Power Unit |
Contact |
| 2- |
|
|
211018 |
2 |
Equalizer Cable |
Contact |
| 3- |
|
|
209066 |
4 |
Cable Nut |
Contact |
| 4- |
|
|
217114A |
4 |
Adapter and Rubber Pad Assembly |
Contact |
| 5- |
|
|
680030B |
4 |
Rubber Pad Frame |
Contact |
| 6- |
|
|
209134 |
4 |
Rubber Pad |
Contact |
| 7- |
|
|
420138 |
4 |
Socket Bolt |
Contact |
| 8- |
|
|
203105A |
4 |
Arm Pin |
Contact |
| 9- |
|
|
520023 |
4 |
Snap Ring |
Contact |
| 10- |
|
|
209035 |
4 |
Arm Restraint Main Moon Gear |
Contact |
| 11- |
|
|
209032 |
12 |
Socket Bolt |
Contact |
| 12- |
|
|
209034 |
18 |
Lock Washer |
Contact |
| 13- |
|
|
209033 |
12 |
Washer |
Contact |
| 14- |
|
|
209020 |
4 |
Plastic Ball |
Contact |
| 15- |
|
|
209021 |
12 |
Hex Nut |
Contact |
| 16- |
|
|
209022 |
10 |
Washer |
Contact |
| 17- |
|
|
209023A |
4 |
Arm Lock |
Contact |
| 18- |
|
|
201041 |
4 |
Limit Ring |
Contact |
| 19- |
|
|
209024 |
4 |
Arm Lock Bar |
Contact |
| 20- |
|
|
209026 |
4 |
Spring |
Contact |
| 21- |
|
|
209025 |
4 |
Hair Pin |
Contact |
| 22- |
|
|
209008 |
2 |
Safety Lock Latch Cover |
Contact |
| 23- |
|
|
209009 |
4 |
Cup Head Bolt |
Contact |
| 24- |
|
|
211013 |
1 |
Offside Safety Lock |
Contact |
| 25- |
|
|
209013 |
1 |
Powerside Safety Lock |
Contact |
| 26- |
|
|
206002 |
2 |
Safety Pin |
Contact |
| 27- |
|
|
209007 |
2 |
Safety Spring |
Contact |
| 28- |
|
|
209012 |
8 |
Hair Pin |
Contact |
| 29- |
|
|
209049 |
3 |
Cable Sheave |
Contact |
| 30- |
|
|
209010 |
1 |
Snap Ring |
Contact |
| 31- |
|
|
206023A |
2 |
Hex Nut |
Contact |
| 32- |
|
|
206006 |
6 |
Washer |
Contact |
| 33- |
|
|
209057 |
6 |
Small Pulley |
Contact |
| 34- |
|
|
209057A |
6 |
Bronze Bush For Pulley |
Contact |
| 35- |
|
|
209056 |
2 |
Nylock Nut |
Contact |
| 36- |
|
|
209014 |
2 |

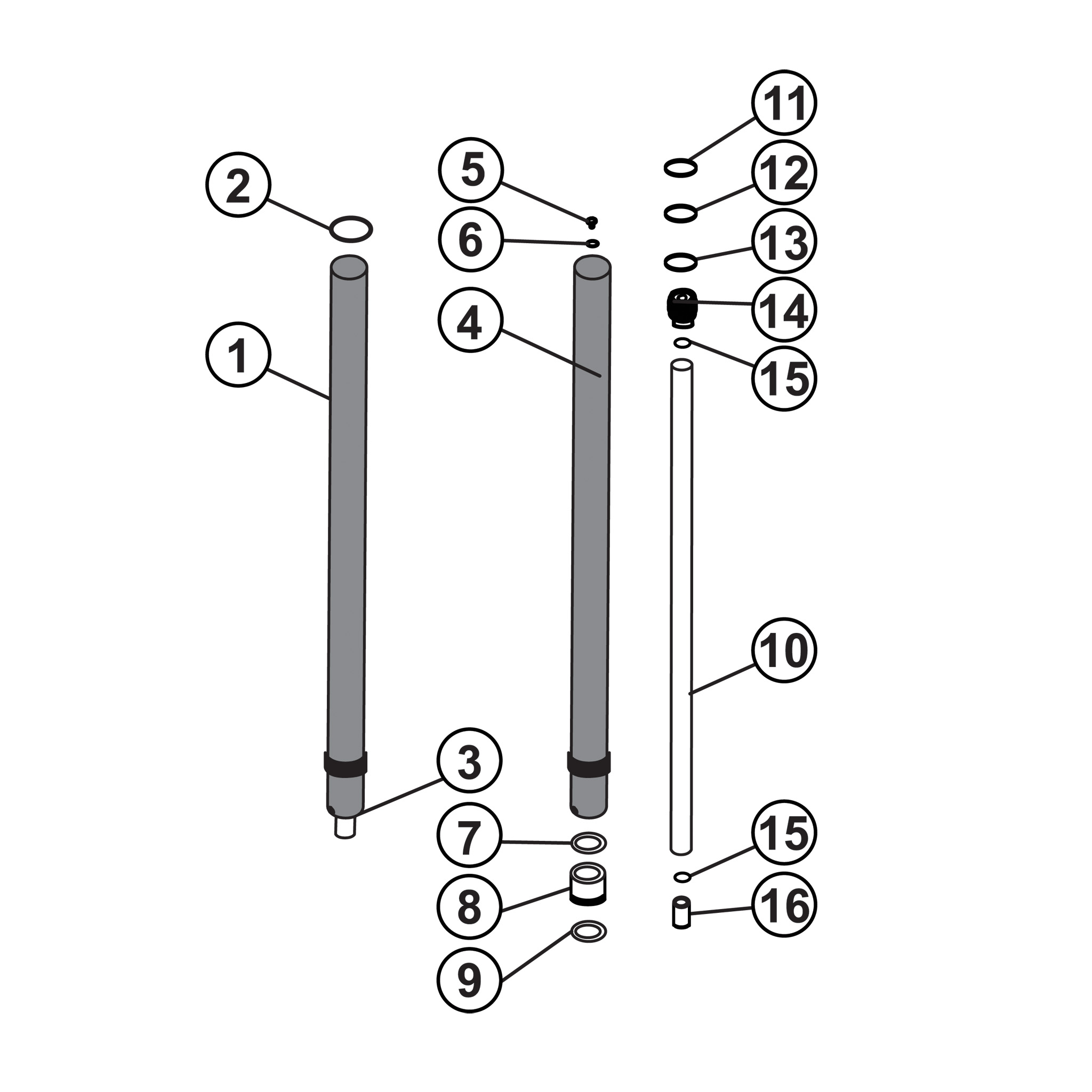

Hydraulic Cylinder |
Contact |
| 37- |
|
|
209111 |
2 |
Protective Ring for Cylinder |
Contact |
| 38- |
|
|
201005 |
2 |
Split Pin |
Contact |
| 39- |
|
|
209028A |
1 |
Lifting Arm - Rear Right |
Contact |
| 40- |
|
|
209179 |
1 |
Outer Arm - Rear Right |
Contact |
| 41- |
|
|
209136B |
1 |
Inner Arm - Rear Right |
Contact |
| 42- |
|
|
209029A |
1 |
Lifting Arm - Front Right |
Contact |
| 43- |
|
|
209137 |
1 |
Outer Arm - Front Right |
Contact |
| 44- |
|
|
206088 |
1 |
Middle Arm - Front Right |
Contact |
| 45- |
|
|
206089A |
1 |
Inner Arm - Front Right |
Contact |
| 46- |
|
|
211015A |
2 |
Hydraulic Hose |
Contact |
| 47- |
|
|
211014 |
1 |
Hydraulic Hose |
Contact |
| 48- |
|
|
211016 |
1 |
T-Fitting |
Contact |
| 49- |
|
|
211017 |
2 |
Extended 90° Elbow Fitting |
Contact |
| 50- |
|
|
209060 |
1 |
90° Elbow Fitting for Power Unit |
Contact |
| 51- |
|
|
209015 |
16 |
Slider Block |
Contact |
| 52- |
|
|
206013 |
1 |
Limit Switch |
Contact |
| 53- |
|
|
206011 |
2 |
Cup Head Bolt |
Contact |
| 54- |
|
|
202011 |
1 |
Control Bar |
Contact |
| 55- |
|
|
206025C |
2 |
Connecting Pin for Control Bar |
Contact |
| 56- |
|
|
206025A |
1 |
Foam Cushion |
Contact |
| 57- |
|
|
206042 |
2 |
Control Bar Support Bracket |
Contact |
| 58- |
|
|
206041 |
4 |
Hex Bolt |
Contact |
| 59- |
|
|
206023 |
4 |
Nylock Nut |
Contact |
| 60- |
|
|
211019 |
1 |
Lock Release Cable |
Contact |
| 61- |
|
|
209184 |
1 |
Wire Cable |
Contact |
| 62- |
|
|
209051B |
4 |
Nesting Height Extensions 1.5” |
Contact |
| 63- |
|
|
209052B |
4 |
Nesting Height Extensions 2.5” |
Contact |
| 64- |
|
|
209053B |
4 |
Nesting Height Extensions 5" |
Contact |
| 65- |
|
|
209027 |
4 |
Rubber Protector on Carriage Gussets |
Contact |
| 66- |
|
|
209018 |
2 |
Door Protector - Rubber |
Contact |
| 66- |
|
|
SVI Exclusive |
1 |
SVI DoorJammer PRO™ Car Door Protector 12"Tall (pair) |
Contact |
| 66- |
|
|
SVI Exclusive |
1 |
SVI DoorJammer PRO™ Car Door Protector 24"Tall (pair) |
Contact |
| 67- |
|
|
209019 |
12 |
Bolt |
Contact |
| 68- |
|
|
620059 |
1 |
Protective Ring |
Contact |
| 69- |
|
|
211002 |
2 |
Carriage |
Contact |
| 70- |
|
|
209016 |
2 |
Carriage Plastic Cover |
Contact |
| 71- |
|
|
209036A |
1 |
Lifting Arm - Front Left |
Contact |
| 72- |
|
|
209177 |
1 |
Outer Arm - Front Left |
Contact |
| 73- |
|
|
206093 |
1 |
Middle Arm - Front Left |
Contact |
| 74- |
|
|
206089A |
1 |
Inner Arm - Front Left |
Contact |
| 75- |
|
|
209037A |
1 |
Lifting Arm-Rear |
Contact |
| 76- |
|
|
209186 |
1 |
Outer Arm - Rear Left |
Contact |
| 77- |
|
|
209140A |
1 |
Inner Arm - Rear Left |
Contact |
| 78- |
|
|
209038 |
6 |
Hex Bolt |
Contact |
| 79- |
|
|
209039 |
10 |
Lock Washer |
Contact |
| 80- |
|
|
211011 |
1 |
Top Beam |
Contact |
| 81- |
|
|
209046 |
4 |
Hex Bolt |
Contact |
| 82- |
|
|
209003 |
4 |
Hex Bolt |
Contact |
| 83- |
|
|
209004 |
4 |
Rubber Ring |
Contact |
| 84- |
|
|
209005 |
4 |
Nylock Nut |
Contact |
| 85- |
|
|
211001 |
1 |
Powerside Column |
Contact |
| 86- |
|
|
211012 |
1 |
Offside Column |
Contact |
| 87- |
|
|
209054A |
2 |
Height Extension Bracket Hangar |
Contact |
| 88- |
|
|
209055 |
6 |
Hex Bolt |
Contact |
| 89- |
|
|
209044 |
2 |
Sheave Pin |
Contact |
| 90- |
|
|
209045 |
2 |
Lower Sheave / Pulley |
Contact |
| 91- |
|
|
620065 |
10 |
Shim |
Contact |
| 91- |
|
|
|
1 |
Shim Assortment 150 Pieces; 3 Sizes |
Contact |
| 92- |
|
|
209059B |
12 |
Wedge Anchor Bolt |
Contact |
| 93- |
|
|
|
1 |
Wheel Spotter Dish Kit - Single Position - with Anchors |
Contact |
| 94- |
|
|
SVI Exclusive |
1 |
Power Station (for 2-Post Lift) |
Contact |
